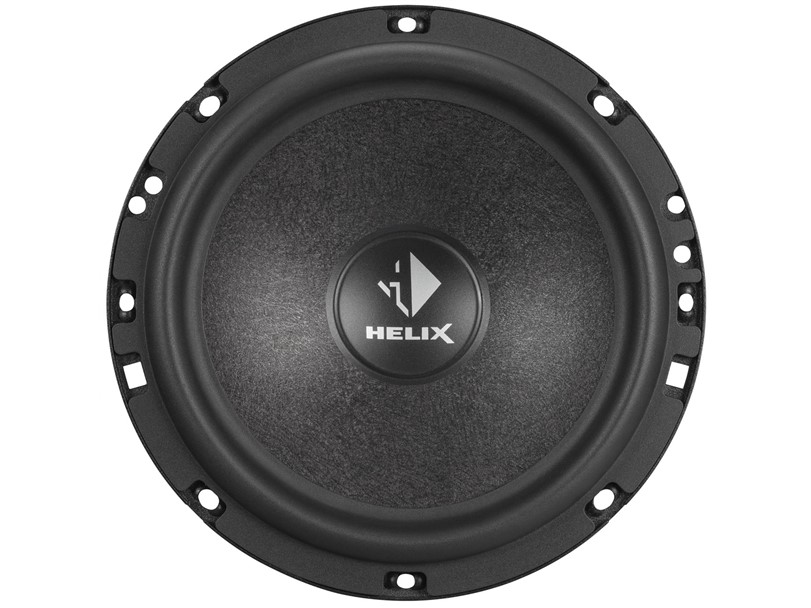

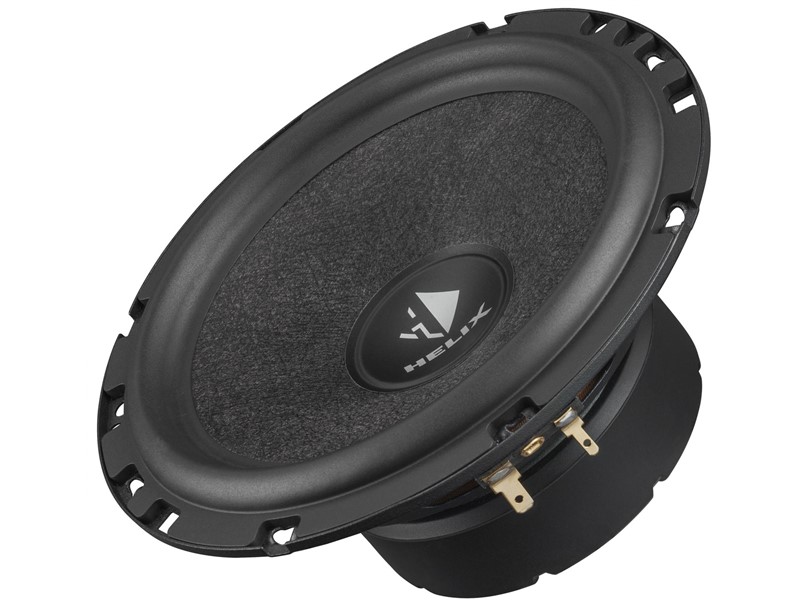

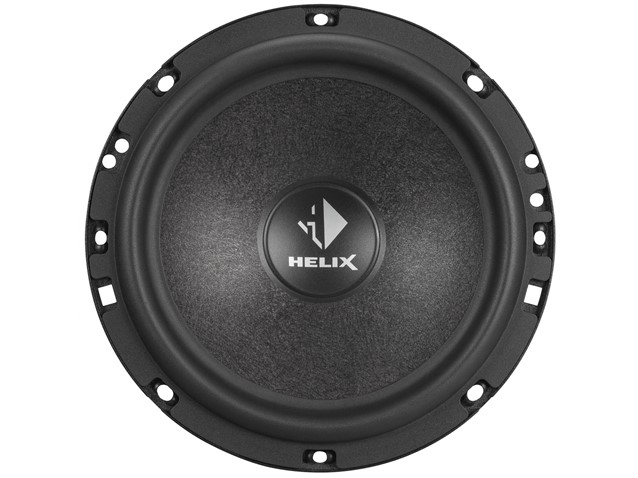

Helix S 6B
6.5" (16.5cm) Mellemtoner
S721600
SPAR 0%
Helix S 6B
6.5" (16.5cm) Mellemtoner
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
1099 DKK
571,48
PR. SÆT
excl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
x
Nærmere beskrivelse på dansk følger snarest...
Elegant designed mid-woofer trimmed for maximum sound quality.
The extremely rigid cone consists of a novel basalt-fiber-paper compound – the perfect combination to guarantee clear and straight sound even at high volume levels. Beside a powerful bass reproduction and peerlessly neutral mids, the S 6B impresses with exceptionally low distortion.
A dream team is the combination with the S 1T tweeter that ideally complements the frequency range. Together with an Audiotec Fischer power amplifier, the S loudspeakers strike up to top form and provide the perfect basis for absolute top sound systems!
Features
6.5” / 165 mm mid-woofer with novel basalt-fiber-paper compound cone – a perfect combination of lowest weight, high stiffness and inner damping
Specially shaped rubber surround for larger effective cone area and increased maximum excursion
Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
Rugged rubber magnet boot with HELIX-logo
Gold-plated terminals
Technical data
Power RMS / max. P 100 / 200 Watts
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 45 Hz - 4,000 Hz
Resonance frequency Fs 67 Hz
Mechanical Q factor Qms 3.87
Electrical Q factor Qes 0.96
Total Q factor Qts 0.77
Compliance Cms 370 μm/N
Equivalent air volume Vas 10.3 L
Force factor B*I 4.8 Tm
Efficiency 1 W / 1 m SPL 90 dB
Cone area Sd 141 cm²
Moving mass Mms 14.8 g
Cone material Basalt-fiber-paper compound
Mechanical resistance Rms 1.64 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height 12 mm
Max. linear excursion Xmax +/- 3 mm
Outer diameter ø 165 mm / 6.50"
Installation diameter ø 143 mm / 5.63"
Installation depth 65 mm / 2.56"
Recommended enclosure volumes
Sealed box
Net volume 9 L
Lower limiting frequency (-3dB) 75 Hz
Scope of delivery

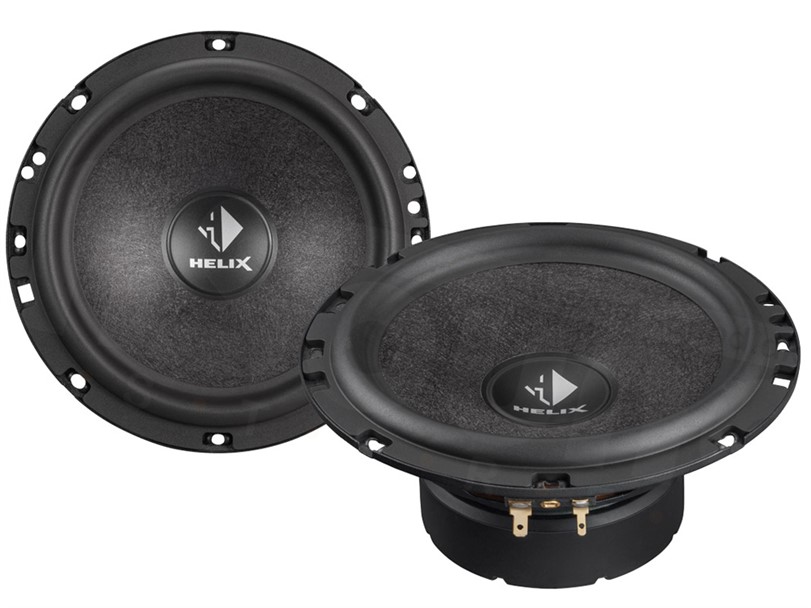

2 x Mid-woofer HELIX S 6B
1 x Mounting material
1 x Data sheet
1 x Mounting pattern
