Helix S 42C
4" (10cm) Højttalersæt m. løs diskant
S722420
SPAR 0%
Helix S 42C
4" (10cm) Højttalersæt m. løs diskant
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
1899 DKK
987,48
PR. SÆT
excl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
x
Nærmere beskrivelse på dansk følger snarest...
Sound quality meets elegance – with the new S-series loudspeakers every ride becomes a special sound experience. The sophisticated design and the use of the latest technologies guarantee excellent sound characteristics with rich bass, accurate mids and crystal-clear highs. Nevertheless, these component systems are not only a highlight in terms of sound quality. Our engineers focused on a novel, timeless elegant design as well as on an easy integration into the vehicle. Low installation depths, a removeable aluminum tweeter housing as well as the innovative, two-part "Flex-Crossover" offer much more freedom in terms of connectivity and installation – especially if the tweeters and woofers are separately installed in the door and A-pillar. Make every ride a special sound experience!
Features

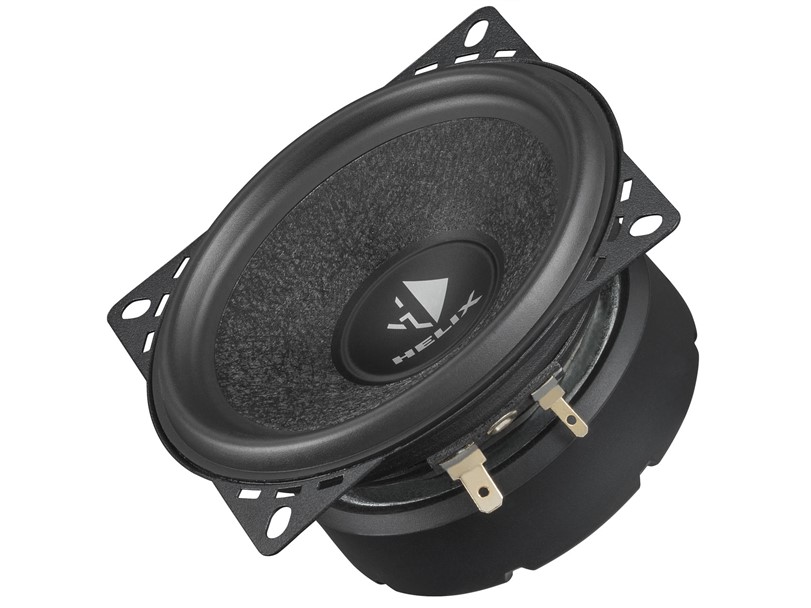

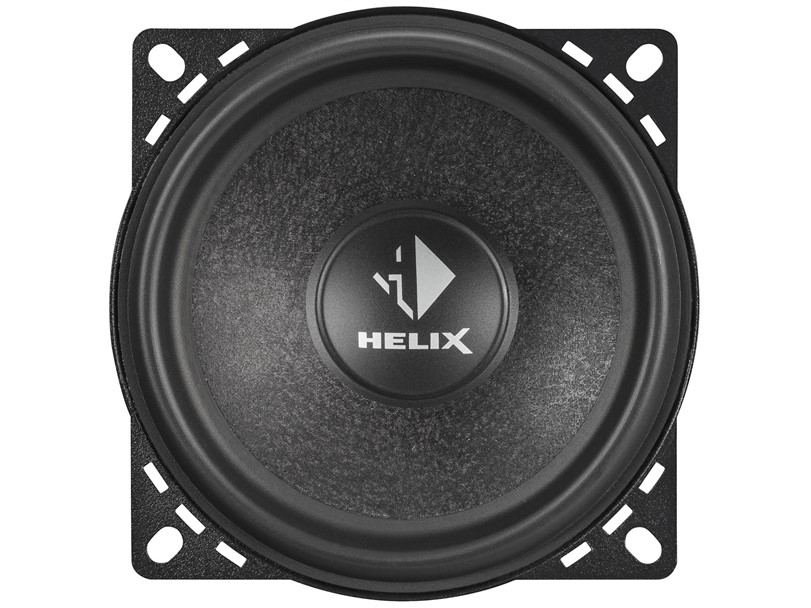

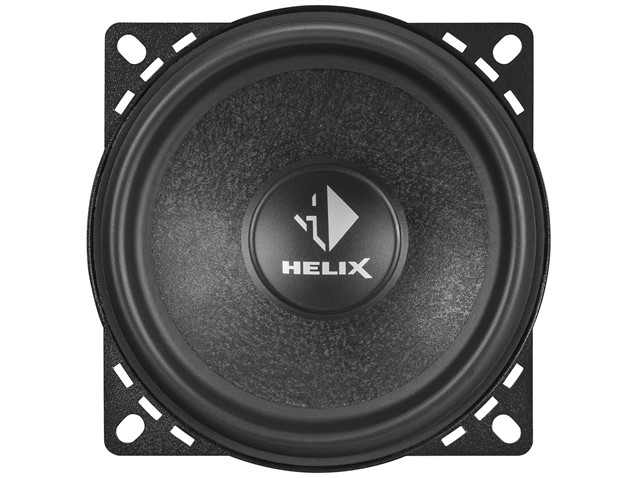

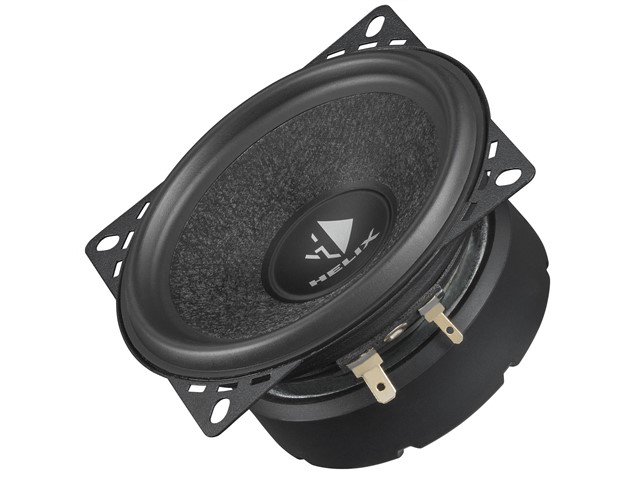

4” / 100 mm woofer with novel basalt-fiber-paper compound cone – a perfect combination of lowest weight, high stiffness and inner damping

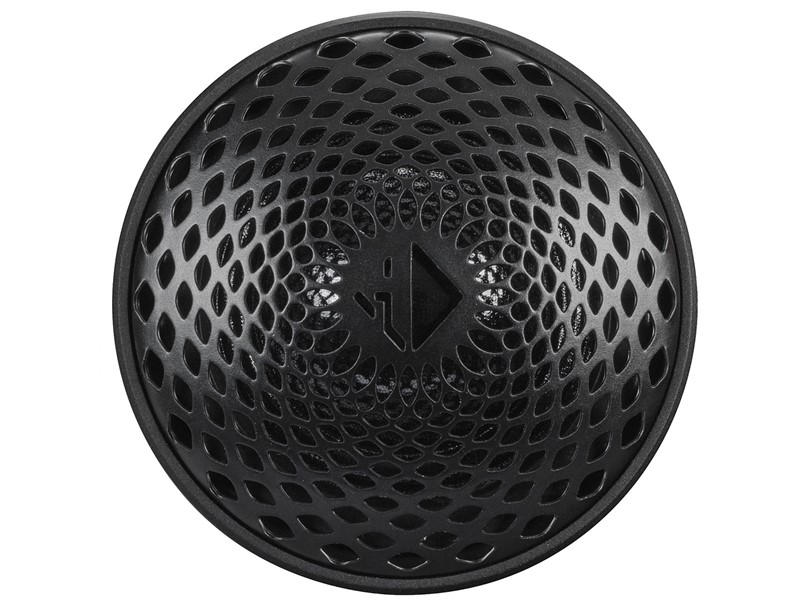

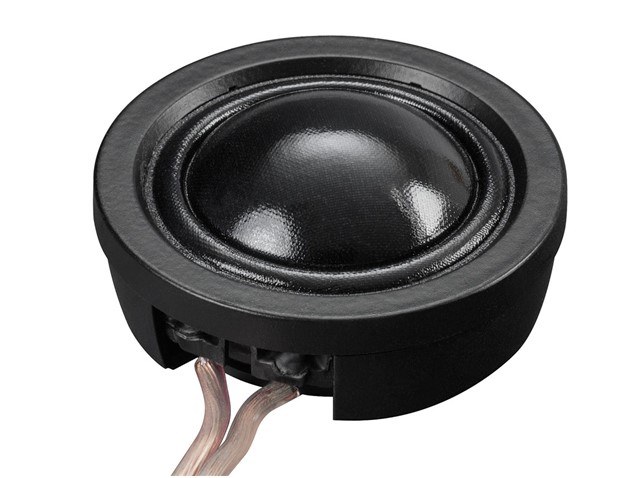

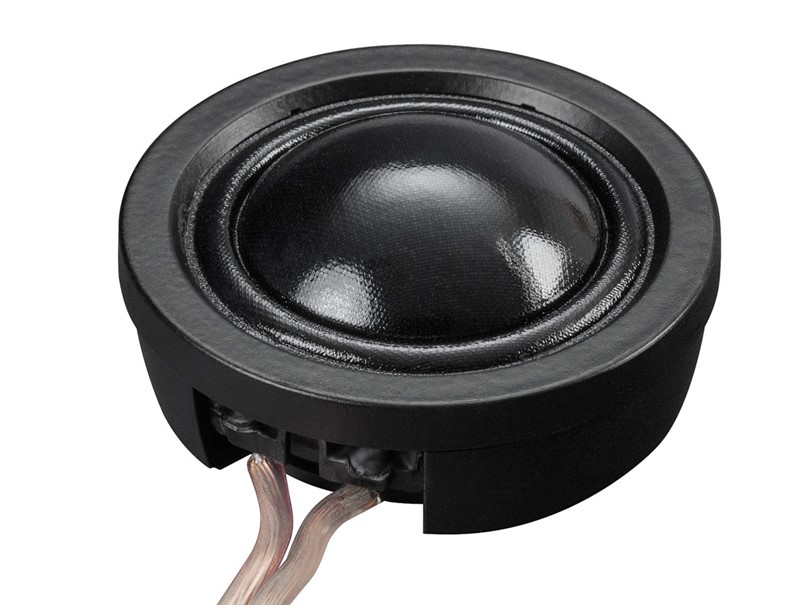

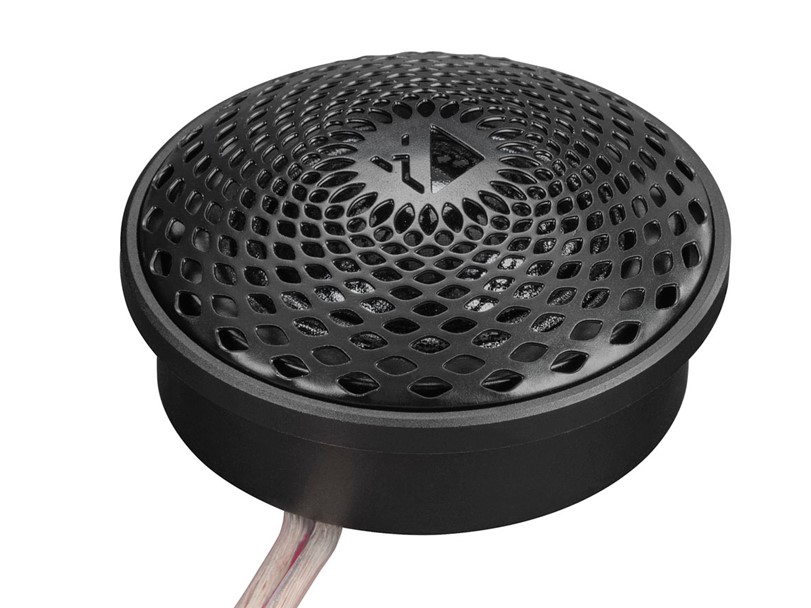

1” / 25 mm silk dome tweeter in a noble aluminum housing for balanced, natural sound reproduction and lowest compression effects
Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling

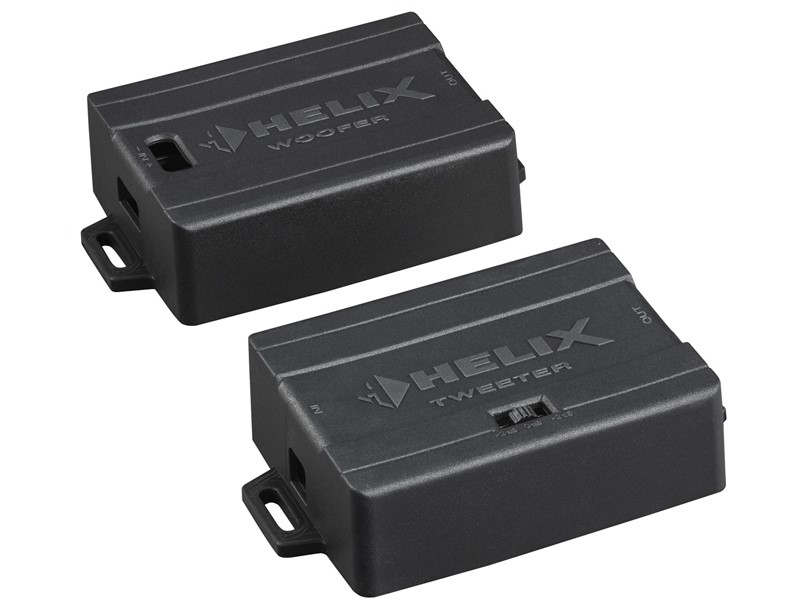

Separate, two-part “Flex-Crossover“ with 12/12 dB slope, bandstop filter and three-stage tweeter level adjustment – well suited for the installation in vehicles with separate mounting positions of the tweeter and woofer
Crossovers solely equipped with high grade components e.g. low-distortion air-core coils and minimum-loss Audiotec-foil capacitors for tweeter crossover
Technical data
<td ">75 Hz - 25,000 Hz<td ">4 Ω<td ">TW: 51 mm / 2.0" M: - W: 102 mm / 4.01"
Power RMS / max.
Frequency response
Impedance
Efficiency 1 W / 1 m 89 dB
Cone material TW: Coated silk dome
M: -
W: Basalt-fiber-paper compund
Crossover 12/12 dB with bandstop filter, tweeter protection and tweeter level adjustment
Outer diameter
Installation diameter TW: 45 mm / 1.77"
M: -
W: 92.3 mm / 3.63"
Installation depth TW: 14 mm / 0.55"
M: -
W: 46.5 mm / 1.83"
Dimensions crossover Tweeter:
88 x 68 x 28 mm /
3.46 x 2.67 x 1.10"
Woofer:
88 x 68 x 28 mm /
3.46 x 2.67 x 1.10"

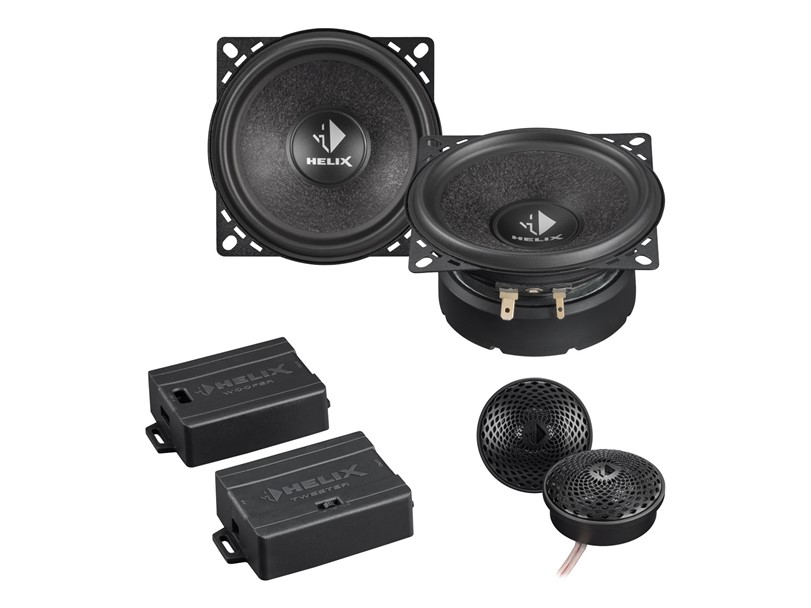

Scope of delivery
2 x Tweeter HELIX S 1T incl. mounting material
2 x Woofer HELIX S 4B
2 x Two-part Flex-Crossover
1 x Mounting material
1 x Instruction manual
1 x Mounting pattern
