Helix Q 12W
12" (30cm) Subwoofer
Q431200
SPAR 0%
Helix Q 12W
12" (30cm) Subwoofer
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
3299 DKK
1.715,48
PR. STK
excl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
x
Nærmere beskrivelse på dansk følger snarest...
At the very first glance, it appears what the new Q subwoofers are designed for. The solid aluminum diecast baskets with diamond cut as well as the massive triple ferrite magnet systems clearly signalize that these subwoofers really mean it. The extremely stiff, hand-scooped cones and oversized voice coils with enormous winding height are literally predestinated to turn incredible volumes of air into deep bass sounds.
Yet sheer power alone is not sufficient – numerous sophisticated technical details together with a smart mix of materials assure highest precision and detailed bass reproduction which will satisfy even most demanding music enthusiasts.
These subwoofers form a perfect symbiosis of maximum sound pressure and state-of-the-art sound quality in a new dimension.
Features

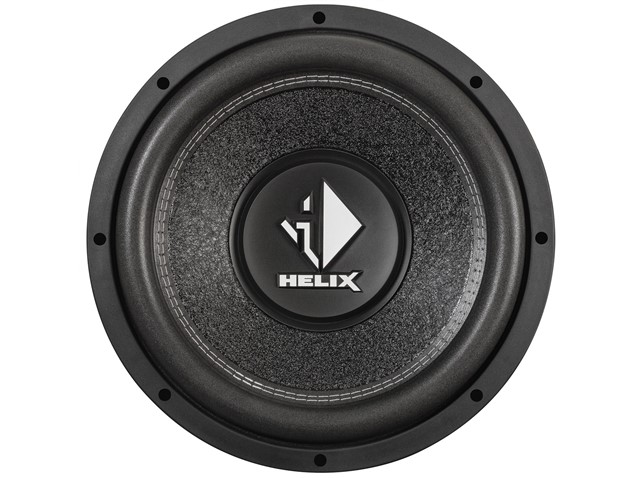

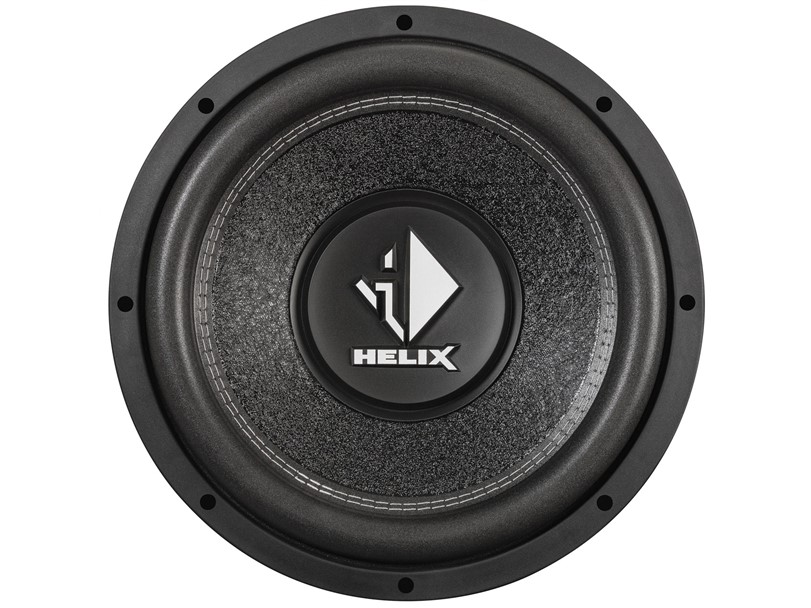

Extremely rigid non-pressed paper cone for maximum stiffness
Wide low-loss foam surround for maximum cone excursions
Concave PP dustcap with embossed HELIX logo
2 x 2 Ohms impedance allows most flexible configuration
High-temperature dual voice coil with enormous winding height for outstanding linear excursion

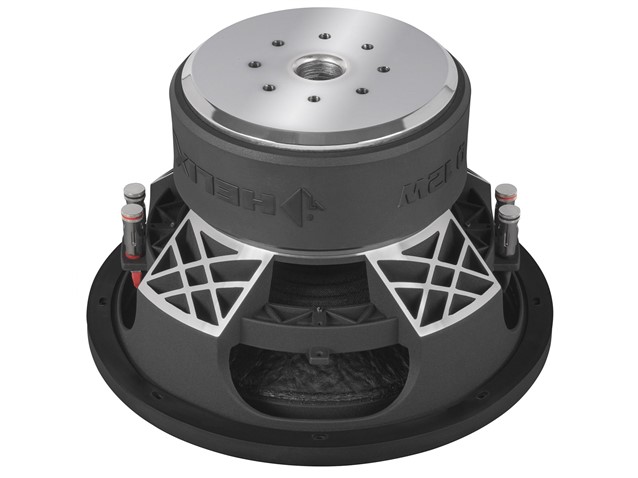

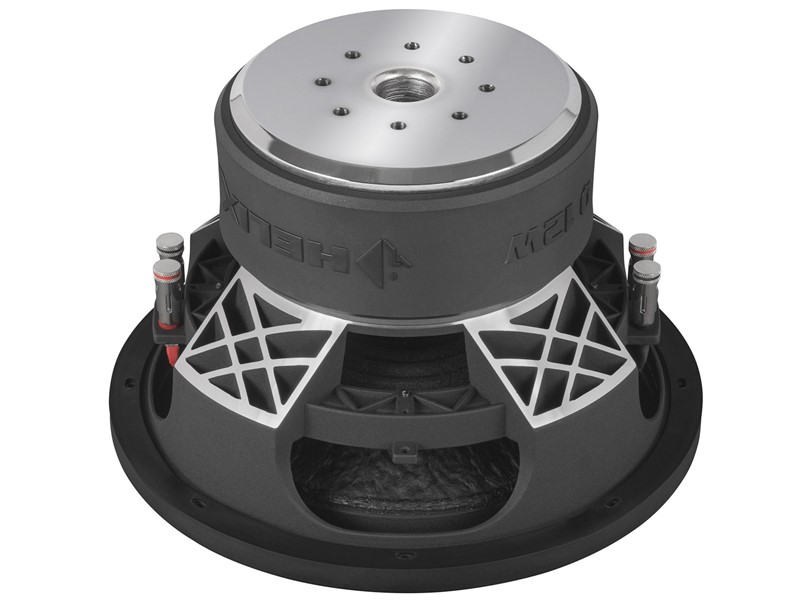

Rock-solid diecast basket with diamond cut
Removable rubber gasket
Rugged butyl magnet cover with HELIX lettering for perfect magnet protection

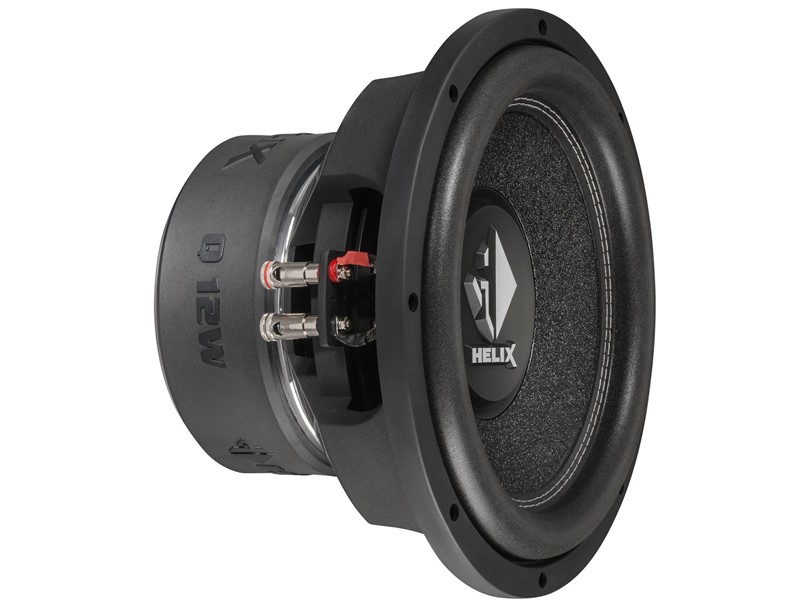

Solid push terminals for large wire gauge
Extremely powerful, 9 x ventilated triple ferrite magnet system for highest magnetic flux linearity
Technical data
Power RMS / max. P 1,000 / 2,000 Watts
Impedance Z 2 x 2 Ω
DC resistance Re 2 x 1.95 Ω
Resonance frequency Fs 35 Hz
Mechanical Q factor Qms 4,61
Electrical Q factor Qes 0,41
Total Q factor Qts 0,37
Compliance Cms 70 μm/N
Equivalent air volume Vas 24.7 L
Force factor B*I 26.8 Tm
Efficiency 1 W / 1 m SPL 87.0 dB
Cone area Sd 539 cm²
Moving mass Mms 330 g
Cone material Non-pressed paper cone
Mechanical resistance Rms 16.0 kg/s
Voice coil diameter ø 76 mm
Voice coil winding height 40 mm
Max. linear excursion Xmax +/- 14.0 mm
Outer diameter ø 326 mm / 12.84"
Installation diameter ø 284 mm / 11.18"
Installation depth 188 mm / 7.40"
Recommended enclosure volumes
Sealed box
Net volume 30 L
Lower limiting frequency (-3dB) 49 Hz
Vented box
Net volume 50 L
Port diameter ø 100 mm / 3.94"
Port area 78 cm²
Port length 28 cm / 11.02"
Port tuning frequency Fb 34 Hz
Lower limiting frequency (-3dB) 33 Hz
Scope of delivery
1 x Subwoofer HELIX Q 12W
1 x Rubber gasket
1 x Data sheet
