Helix P 6B
6.5" (16.5cm) Mellemtoner
P821600
SPAR 0%
Helix P 6B
6.5" (16.5cm) Mellemtoner
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
1399 DKK
727,48
PR. SÆT
excl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
x
Nærmere beskrivelse på dansk følger snarest...
Nærmere beskrivelse på dansk følger snarest...

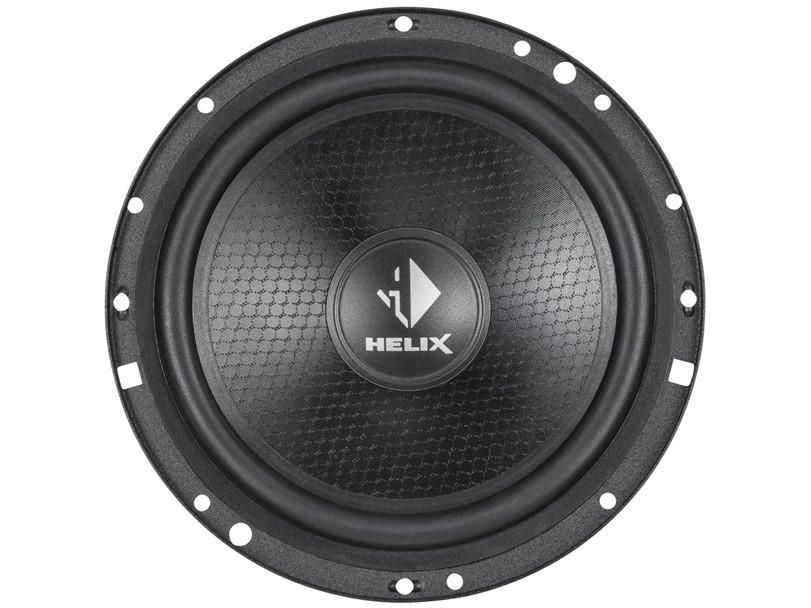

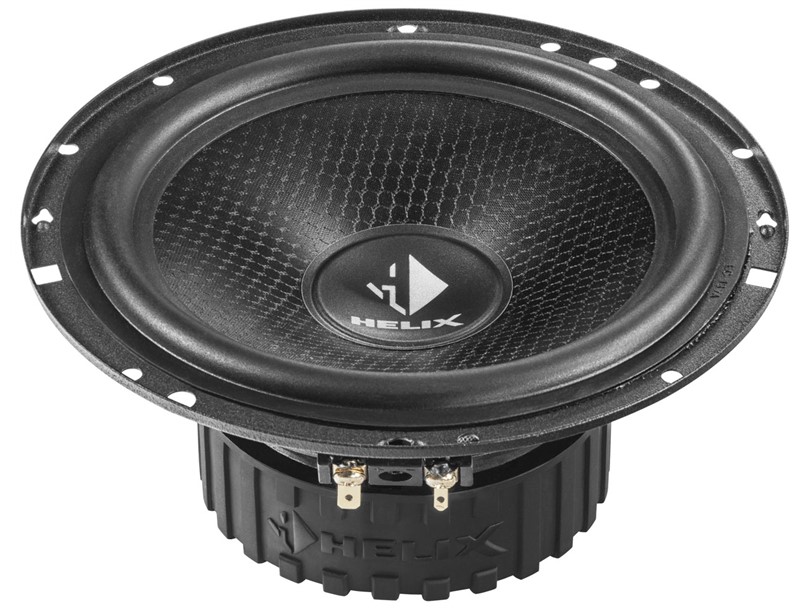

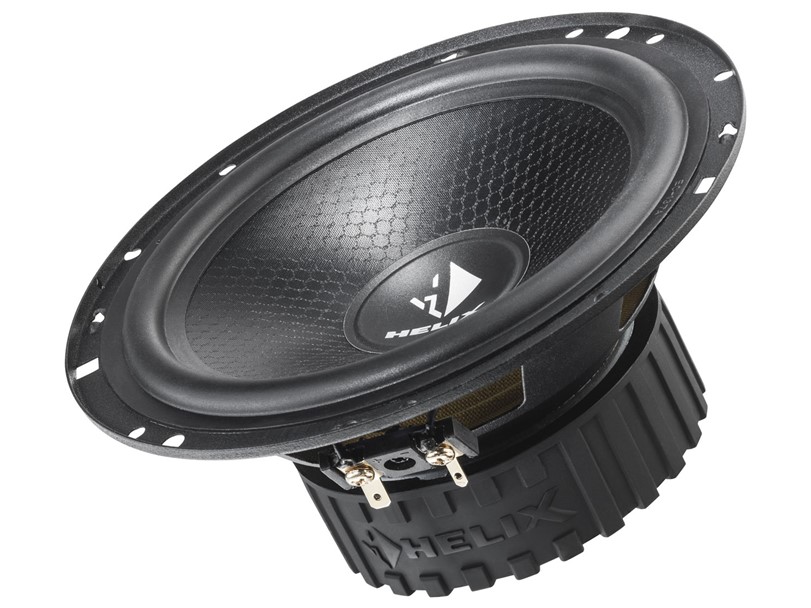

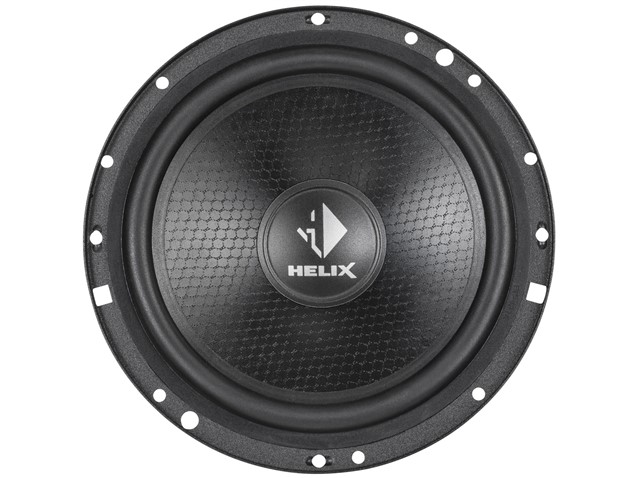

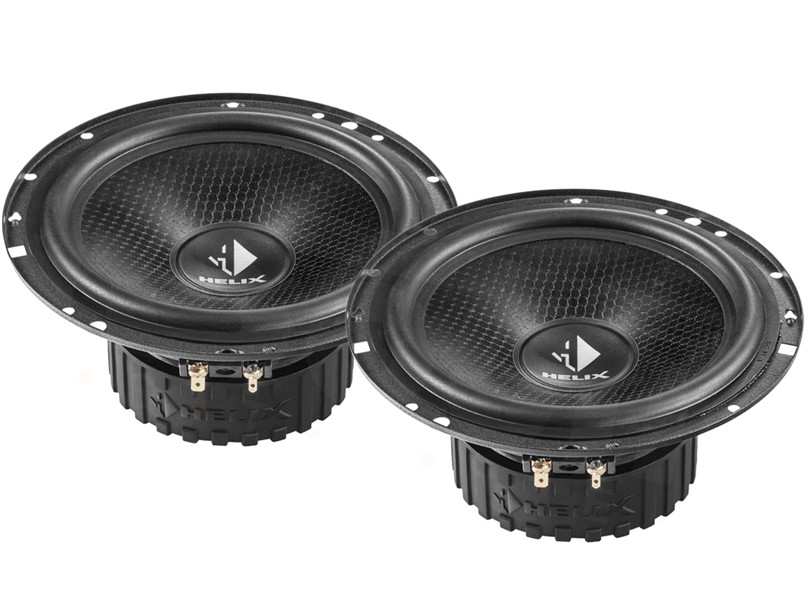

The details make the difference - don't get mislead by the discreet visual appearance of the P 6B. This driver is definitely a perfect basis for a top-class sound system. Its unique glassfiber-paper compound cone combines minimum weight with maximum stiffness and perfect inner damping. To further reduce the moving mass an 1-inch / 25 mm voice coil has been chosen which nevertheless can easily handle up to 100 Watts RMS due to its extremely high temperature resistance. It's not only the powerful kick bass and the uncoloured midrange response but also the exceptional low distortion which makes the P 6B a "winner".
Features
Novel glassfiber-paper compound cone for maximum stiffness combined with lowest moving mass and perfect inner damping
Special shaped rubber surround for long linear cone excursion

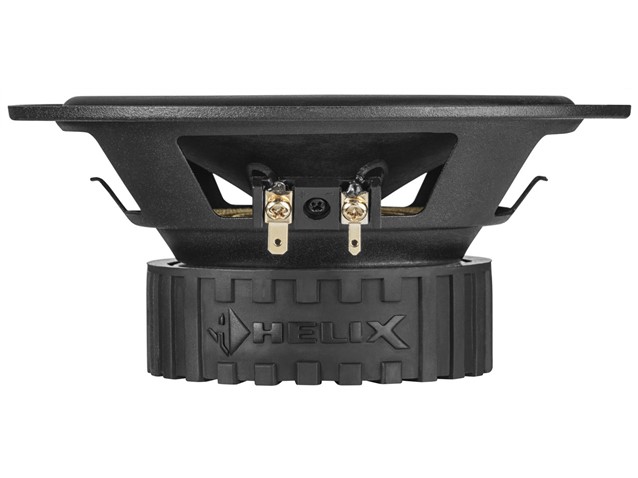

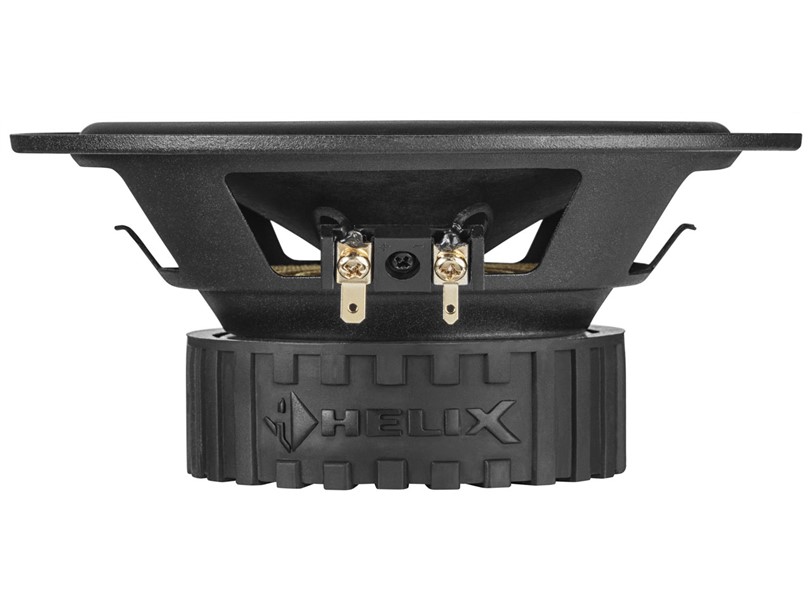

Gold-plated terminals
Individual HELIX design basket
Solid rubber magnet protection ring with HELIX logo

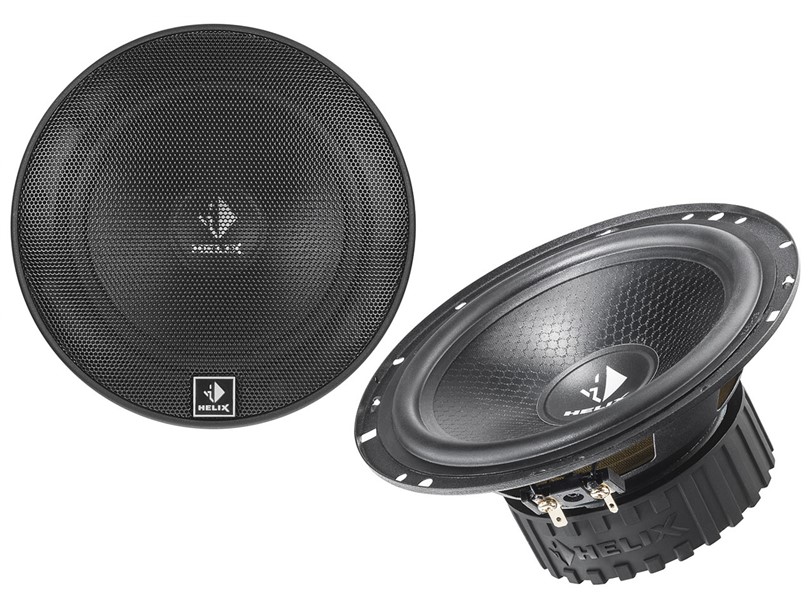

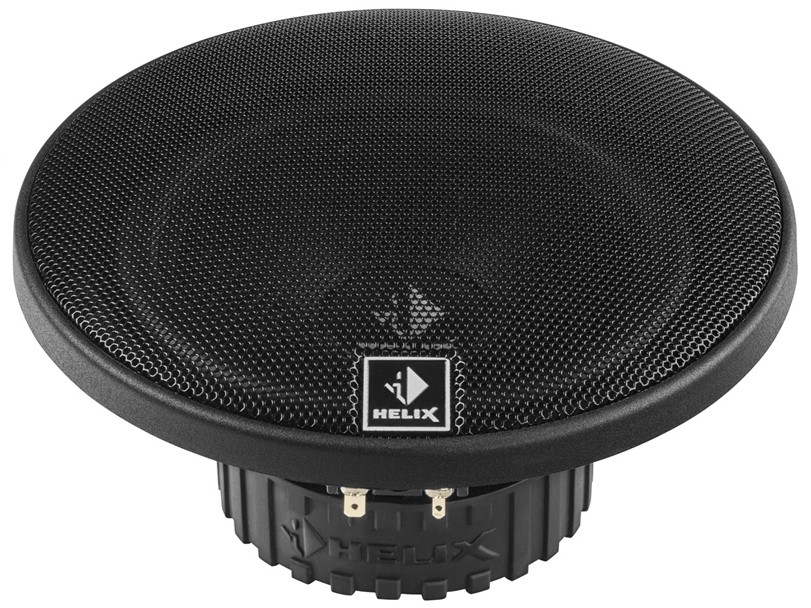

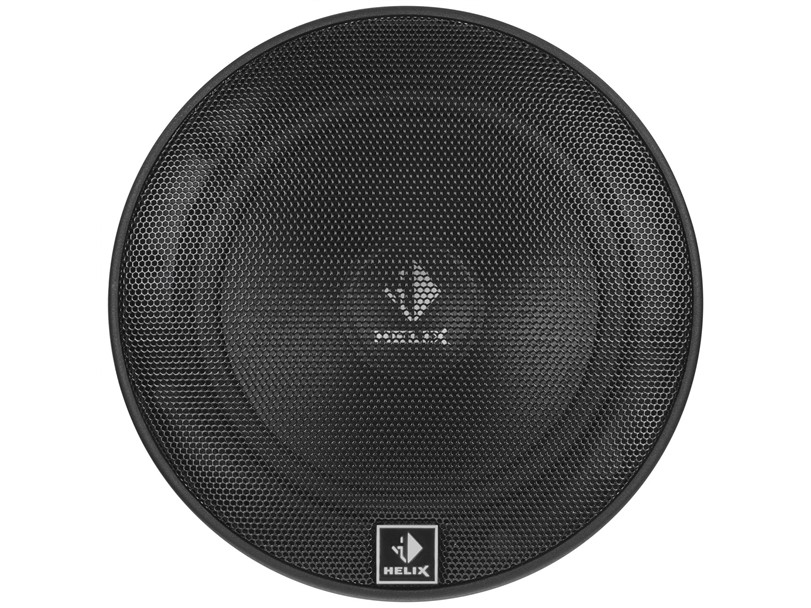

Grille included
Technical data
Power RMS / max. P 100 / 200 Watts
Impedance Z 4 Ω
DC resistance Re 3.5 Ω
Frequency response 40 Hz - 4,000 Hz
Resonance frequency Fs 56 Hz
Mechanical Q factor Qms 5.48
Electrical Q factor Qes 0.54
Total Q factor Qts 0.49
Compliance Cms 571 μm/N
Equivalent air volume Vas 13.2 L
Force factor B*I 5.7 Tm
Efficiency 1 W / 1 m SPL 90 dB
Cone area Sd 129 cm²
Moving mass Mms 14.3 g
Cone material Glassfiber-paper compound
Mechanical resistance Rms 0.91 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height 12 mm
Max. linear excursion Xmax +/- 3 mm
Outer diameter ø 165.5 mm / 6.50"
Installation diameter ø 142 mm / 5.60"
Installation depth 67 mm / 2.64"
Recommended enclosure volumes
Sealed box
Net volume 8 L
Lower limiting frequency (-3dB) 75 Hz
Vented box
Net volume 14 L
Port diameter ø 50 mm / 2.00"
Port area 20 cm²
Port length 12.5 cm / 4.92"
Port tuning frequency Fb 48 Hz
Lower limiting frequency (-3dB) 51 Hz
Scope of delivery
2 x Mid-woofer HELIX P 6B
2 x Mounting ring
2 x Grille
1 x Mounting material
