Helix P 63C
3-vejs Komponentsystem m. løs diskant
P823620
SPAR 0%
Helix P 63C
3-vejs Komponentsystem m. løs diskant
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
3999 DKK
2.079,48
PR. SÆT
excl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
x
Nærmere beskrivelse på dansk følger snarest...
Puristic yet trimmed to maximum sound quality - the component speaker systems of the P series don't need to dazzle with visual gimmicks. The whole construction with lots of finesse follows the acoustic performance which is absolutely breathtaking.
The unique glassfiber-paper compound cone of the mid-woofer, the huge but easy to install 2” / 50 mm midrange speaker, the hand-coated silk dome tweeter and the complex crossover network with tweeter level adjustment are only a few of the technical highlights.
So everybody who don´t care about some more installation effort of the 3-way component system will be rewarded with a fantastic resolution and highly accurate spatial reproduction.
Features

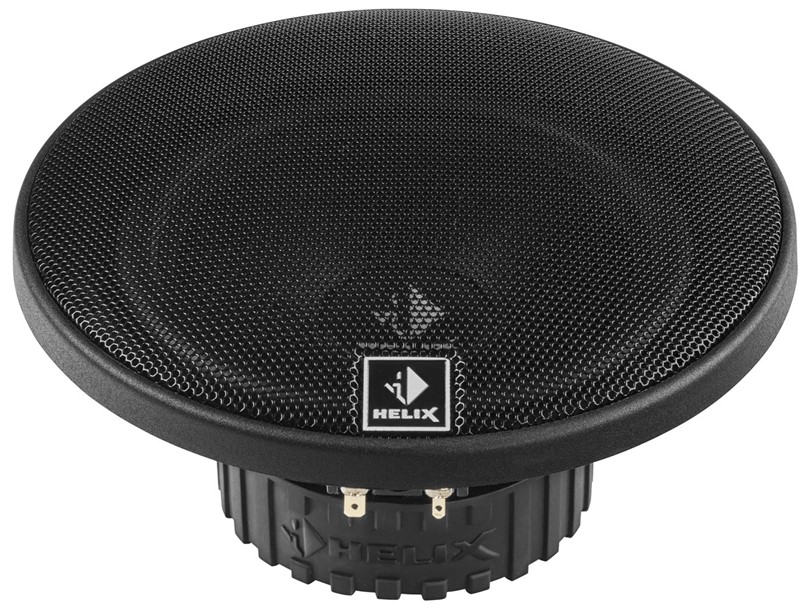

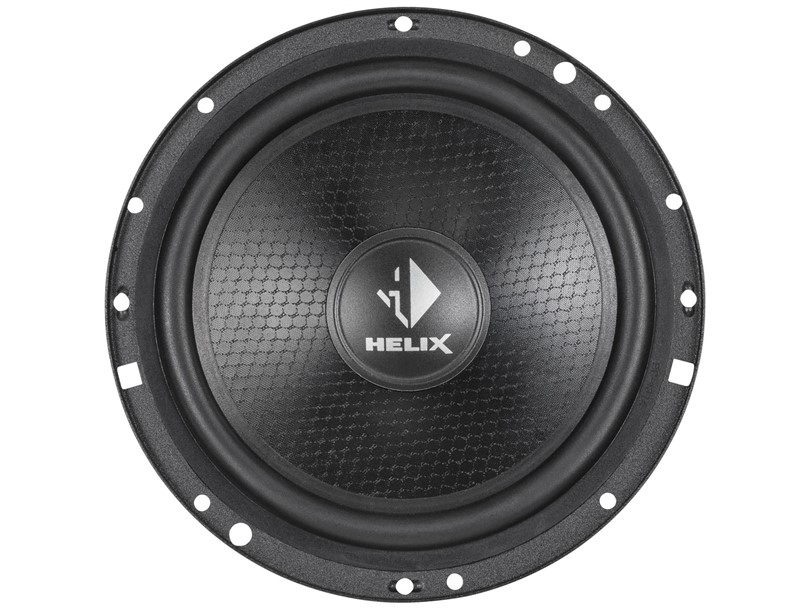

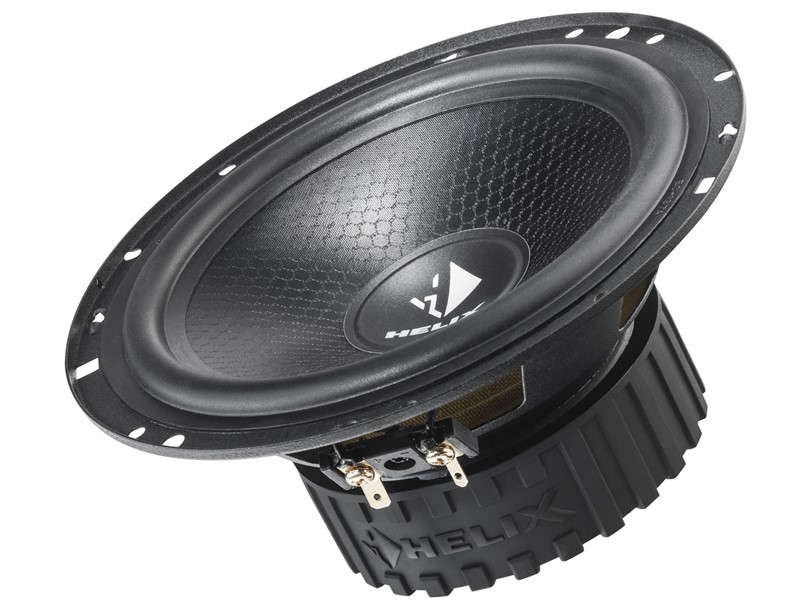

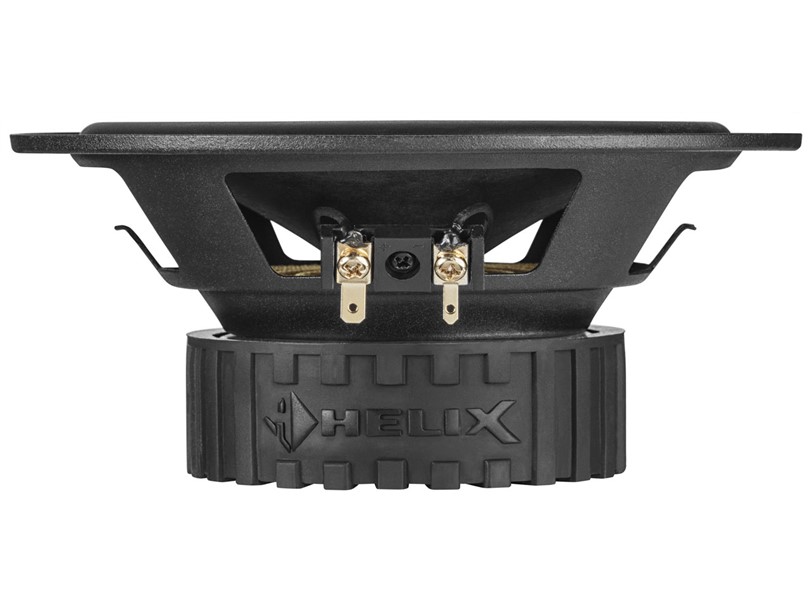

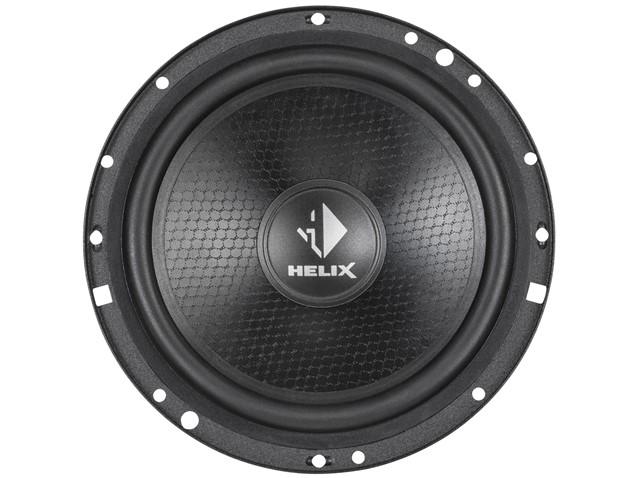

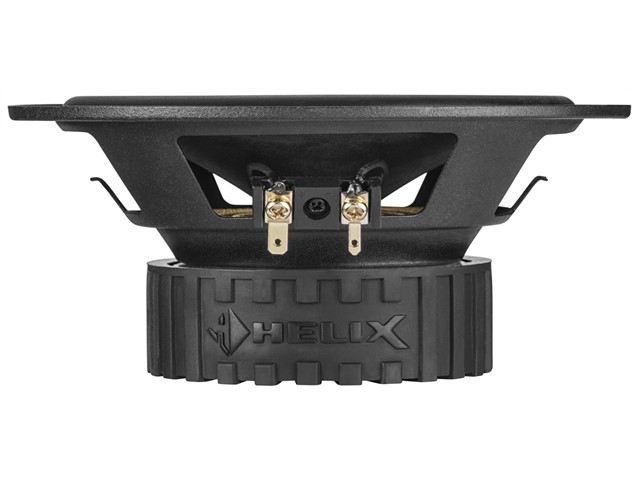

6.5” / 165 mm woofer with novel glassfiber-paper compound cone for maximum stiffness combined with lowest moving mass and perfect inner damping

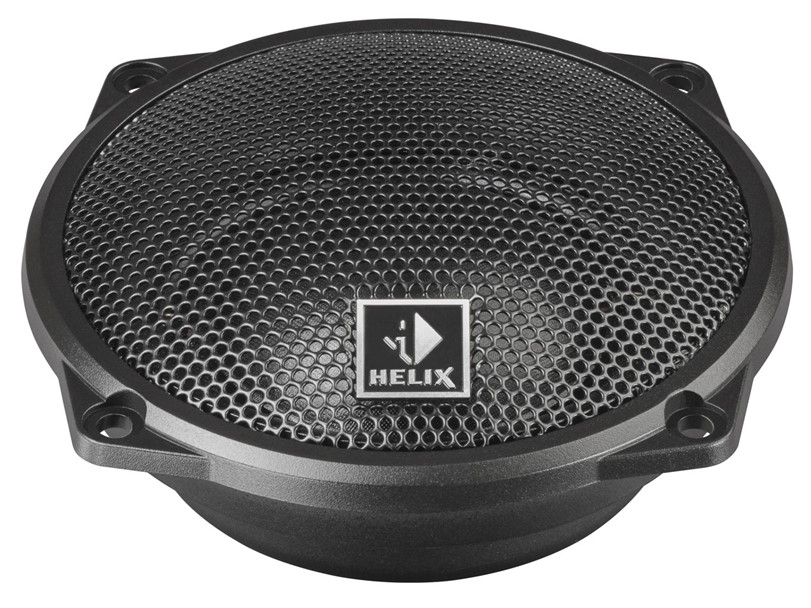

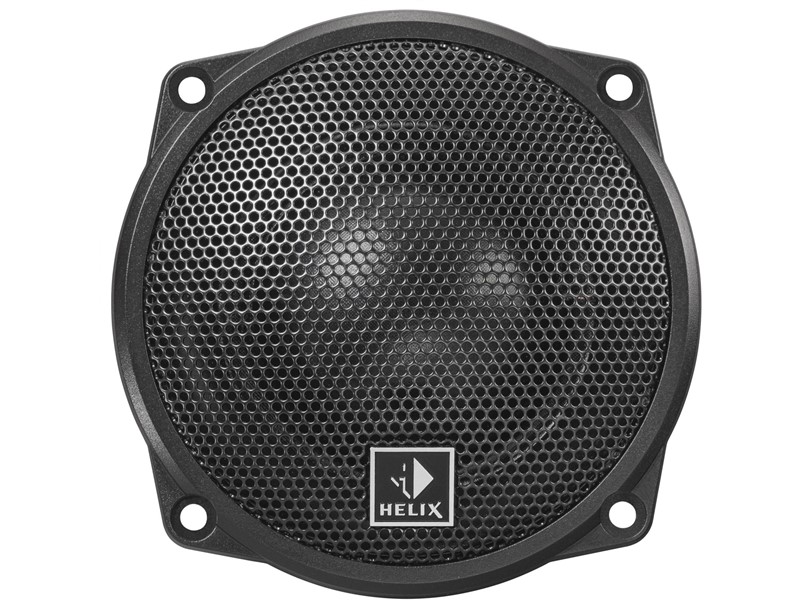

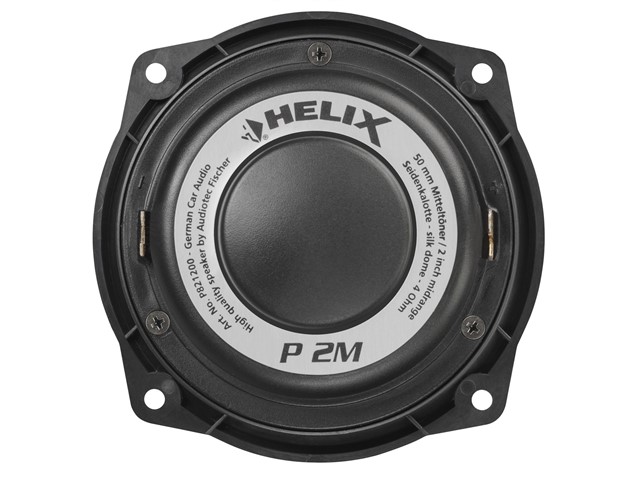

2” / 50 mm midrange with lightweight, hand-coated silk dome for perfect impulse response

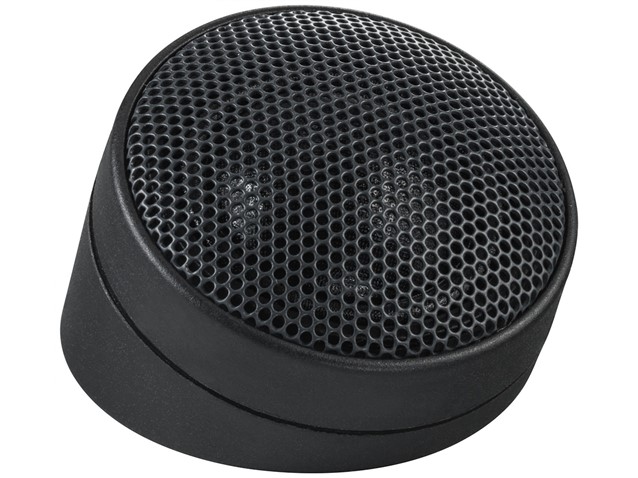

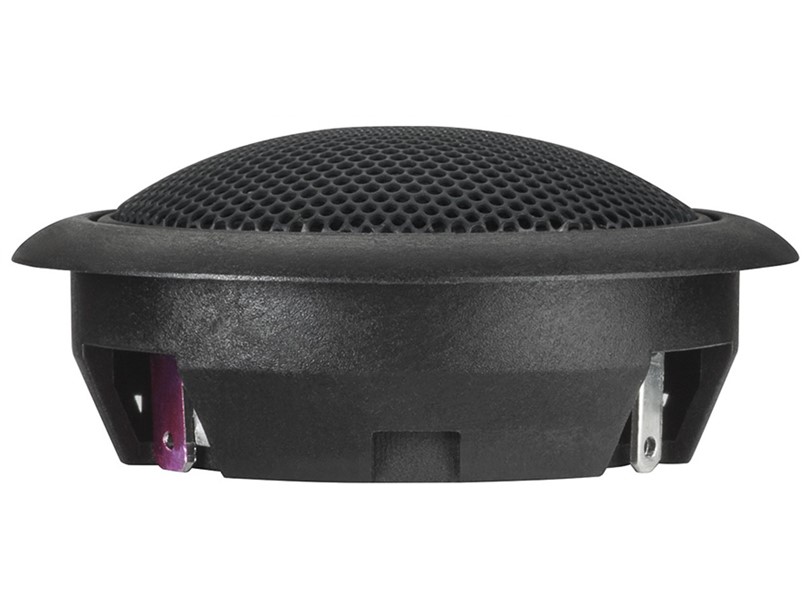

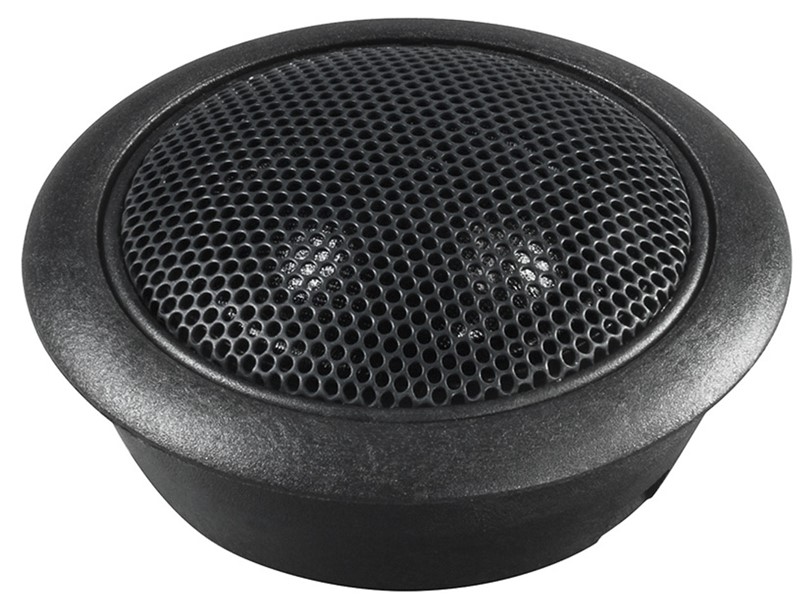

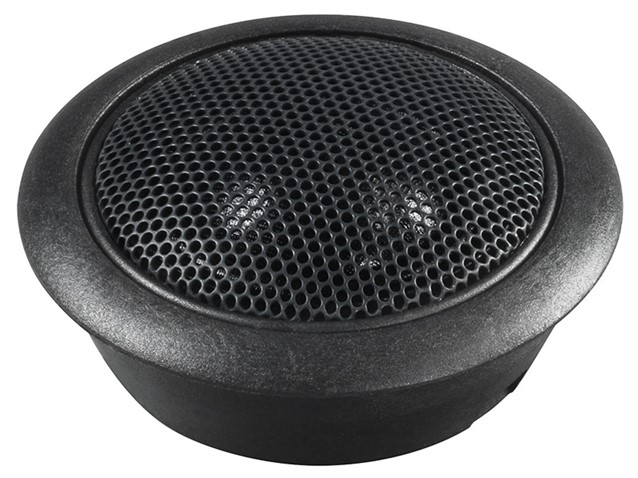

1” / 25 mm tweeter with hand-coated silk dome for balanced, natural sound reproduction and lowest compression effects
Complex 12 dB crossover network with three-stage tweeter level adjustment; solely equipped with highgrade components:
- Low-distortion inductors with minimum DC resistance
- Low-induction metal film resistors
- Minimum-loss foil capacitors for midrange and tweeter crossover
Gold-plated terminals
Grille included
Technical data
Power RMS / max. 125 / 250 Watts
Frequency response 40 Hz - 25,000 Hz
Impedance 4 Ω
Efficiency 1 W / 1 m 90 dB
Cone material TW: Coated silk
M: Coated silk
W: Glassfiber-paper compound
Crossover 12 dB with tweeter level adjustment
Outer diameter TW: 58 mm / 2.28"
M: 93 mm / 3.66"
W: 165.5 mm / 6.52"
Installation diameter TW: 49.3 mm / 1.95"
M: 82 mm / 3.23"
W: 142 mm / 5.60"
Installation depth TW: 15 mm / 0.60"
M: 30 mm / 1.18"
W: 67 mm / 2.64"

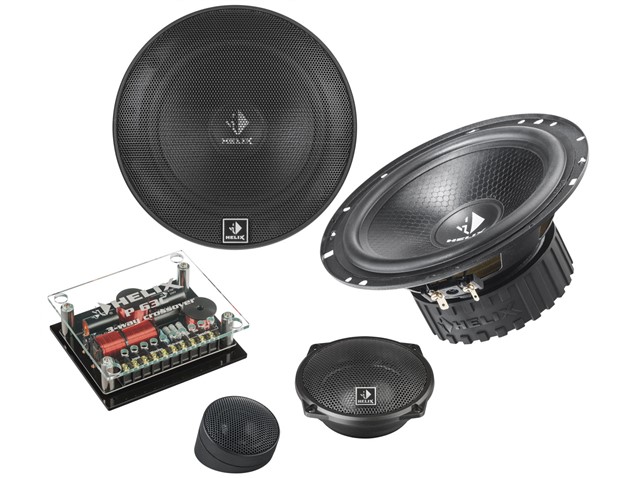

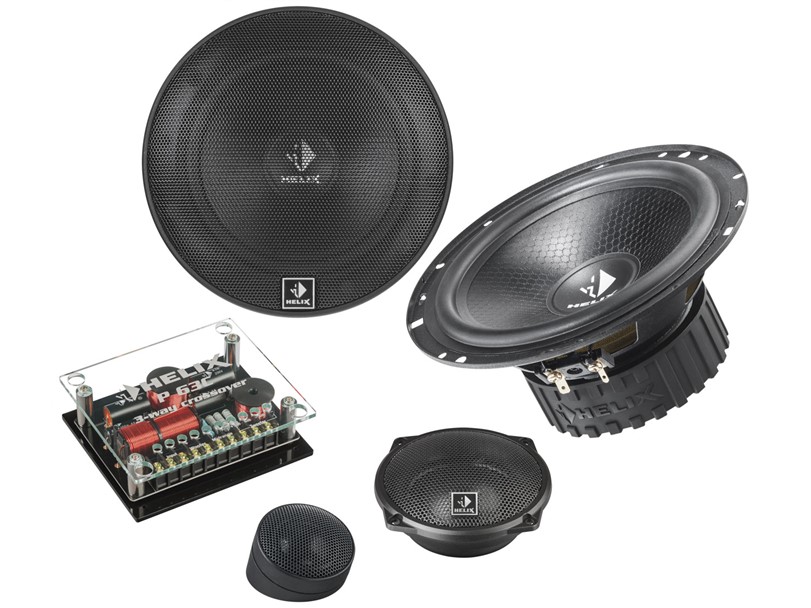

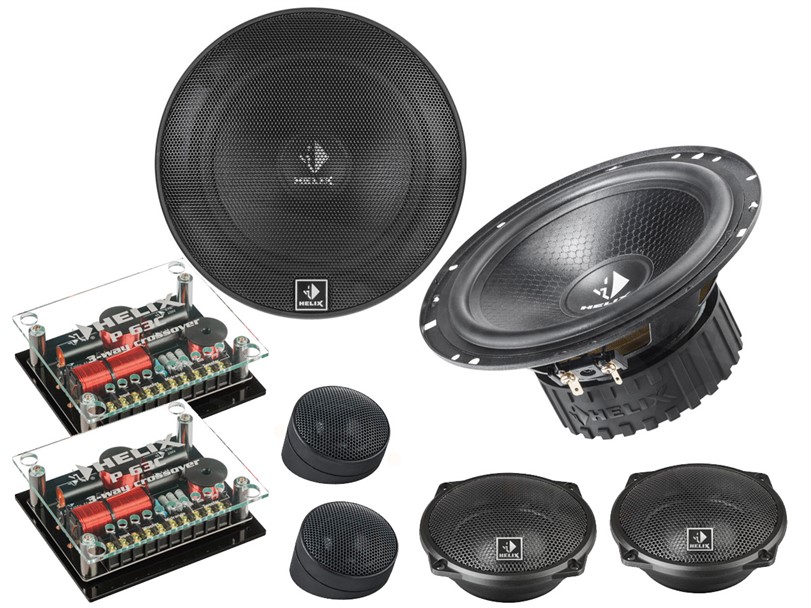

Scope of delivery
2 x Tweeter HELIX P 1T incl. flush mount

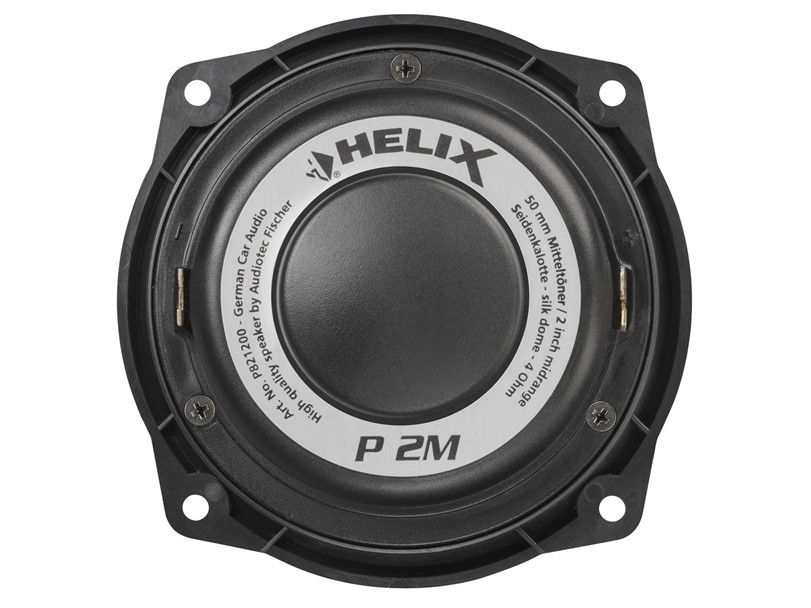

2 x Midrange speaker HELIX P 2M
2 x Woofer HELIX P 6B incl. mounting ring and grille
2 x 3-way crossover

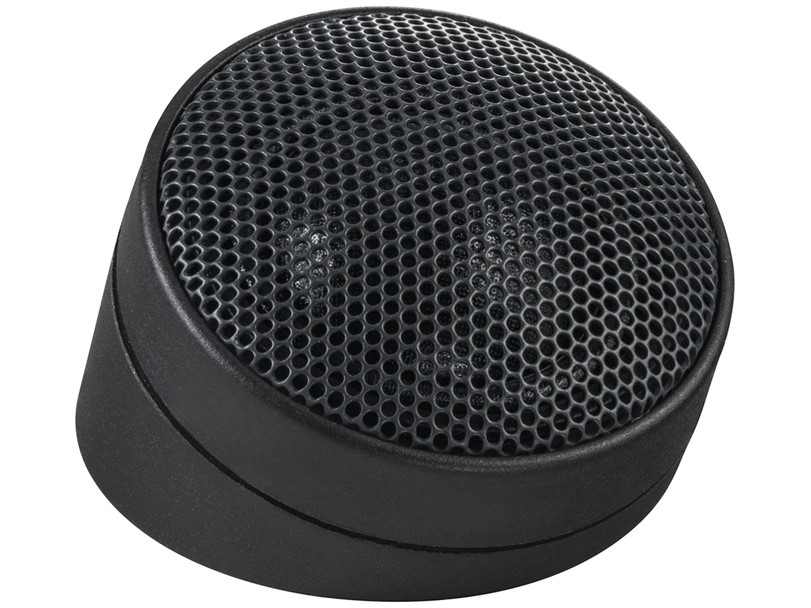

2 x Surface mount for tweeter
2 x Fitting spring for tweeter
1 x Mounting material
