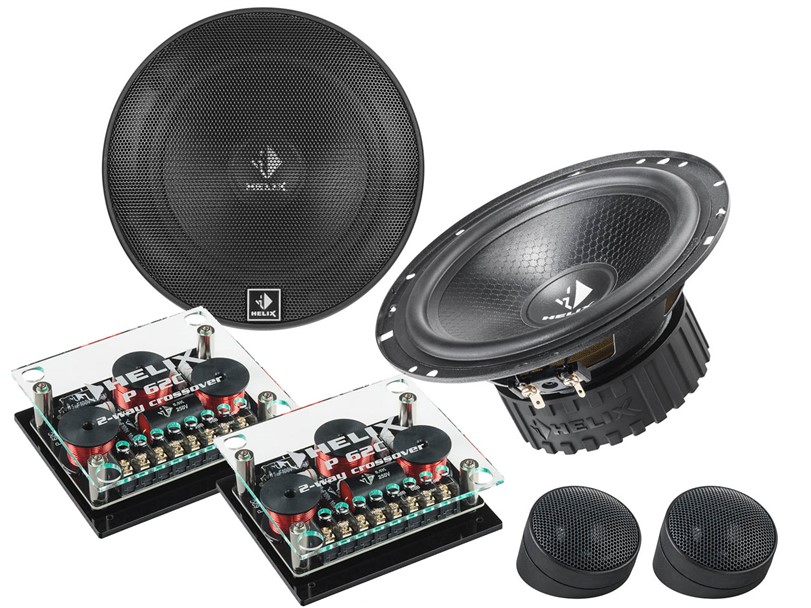

Helix P 62C
6.5” (16.5cm) Højttalersæt m. løs diskant
P822620
SPAR 0%
Helix P 62C
6.5” (16.5cm) Højttalersæt m. løs diskant
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
2499 DKK
1.299,48
PR. SÆT
excl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
x
Nærmere beskrivelse på dansk følger snarest...
Puristic yet trimmed to maximum sound quality - the component speaker systems of the P series don't need to dazzle with visual gimmicks. The whole construction with lots of finesse follows the acoustic performance which is absolutely breathtaking.
The unique glassfiber-paper compound cone of the mid-woofer, the hand-coated silk dome tweeter and the complex crossover network with impedance compensation and band-stop filter are only a few of the technical highlights. Therefore, it is not a surprise that the P 62C already gathered excellent test rewards.
Features

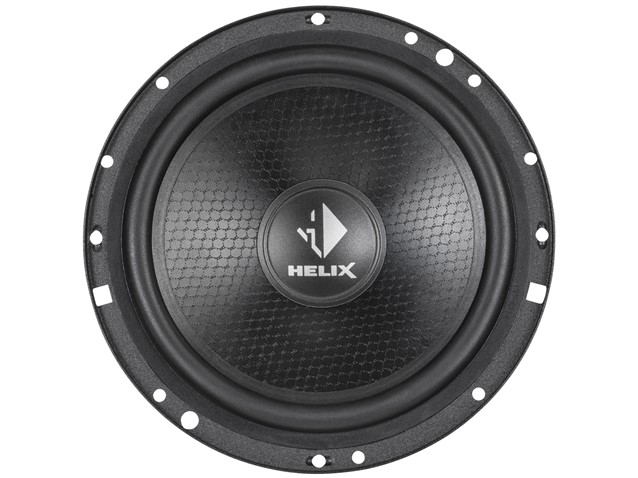

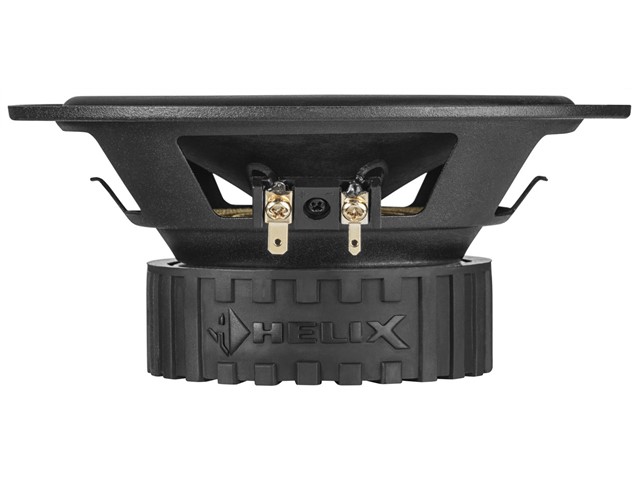

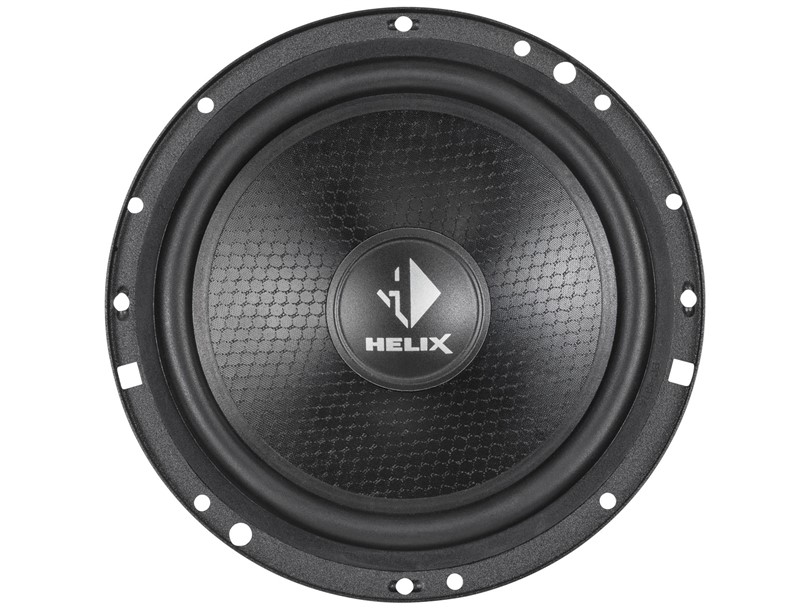

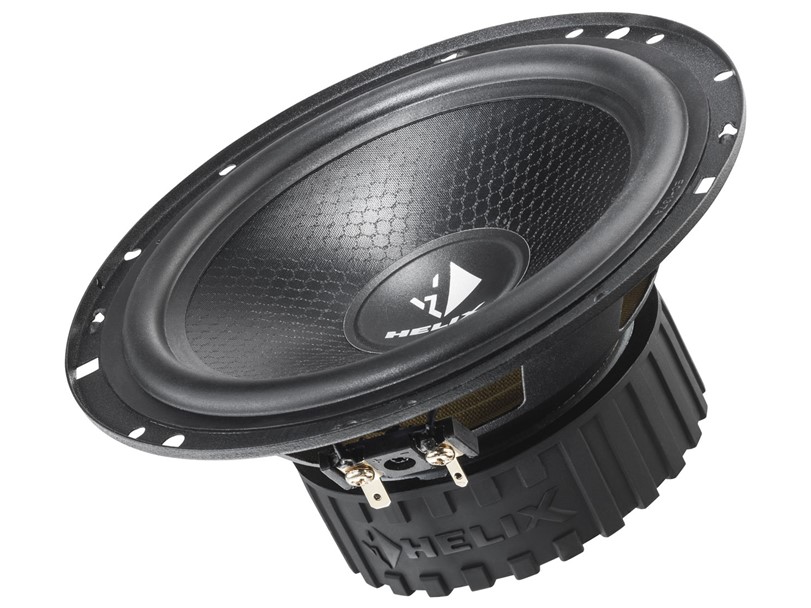

6.5” / 165 mm woofer with novel glassfiber-paper compound cone for maximum stiffness combined with lowest moving mass and perfect inner damping

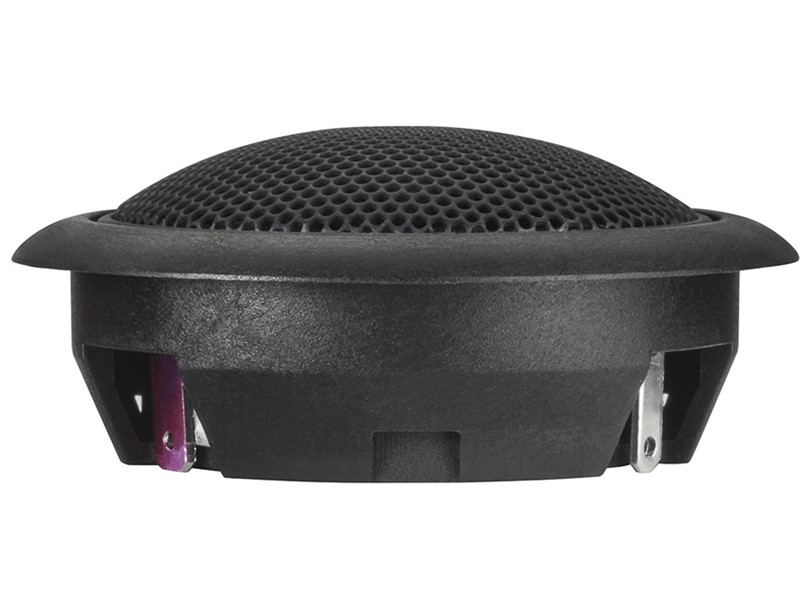

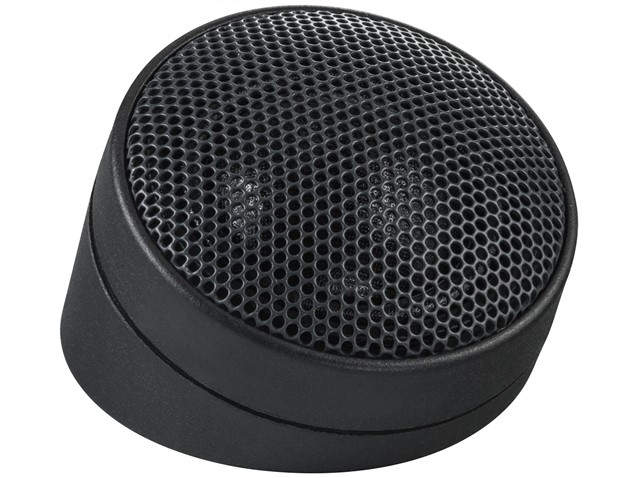

1” / 25 mm tweeter with hand-coated silk dome for balanced, natural sound reproduction and lowest compression effects

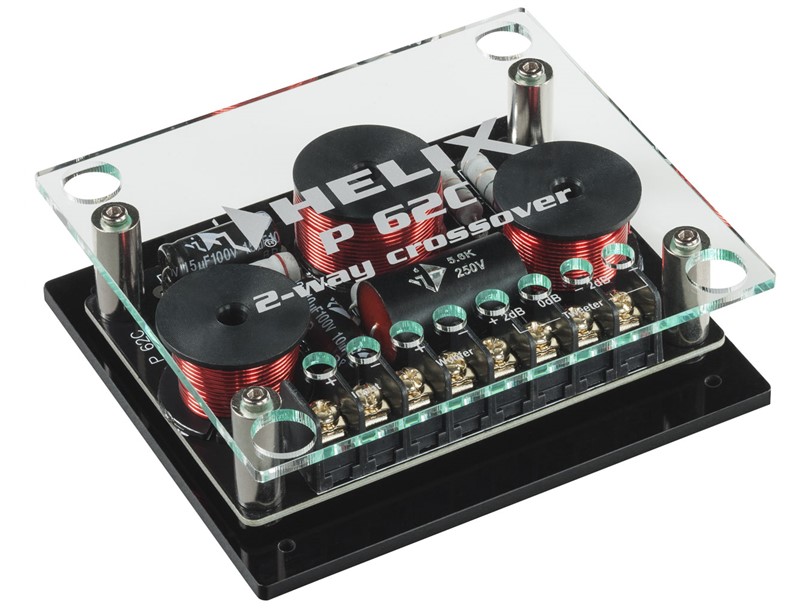

Complex crossover network with impedance compensation, band-stop filter and tweeter level adjustment; solely equipped with high grade components:
- Zero-distortion air coils with loweest DC resistance
- Low-induction metal film resistors
- Minimum-loss Audiotec foil condensers for tweeter crossover

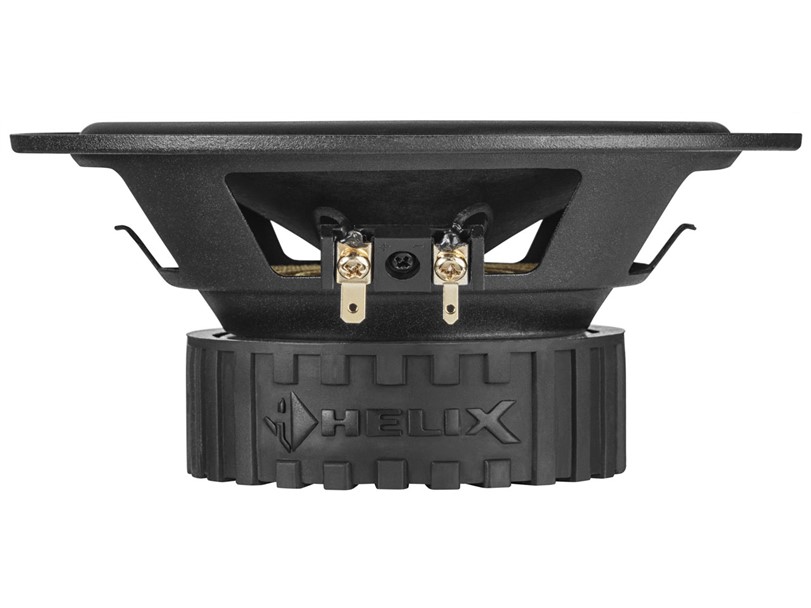

Gold-plated terminals

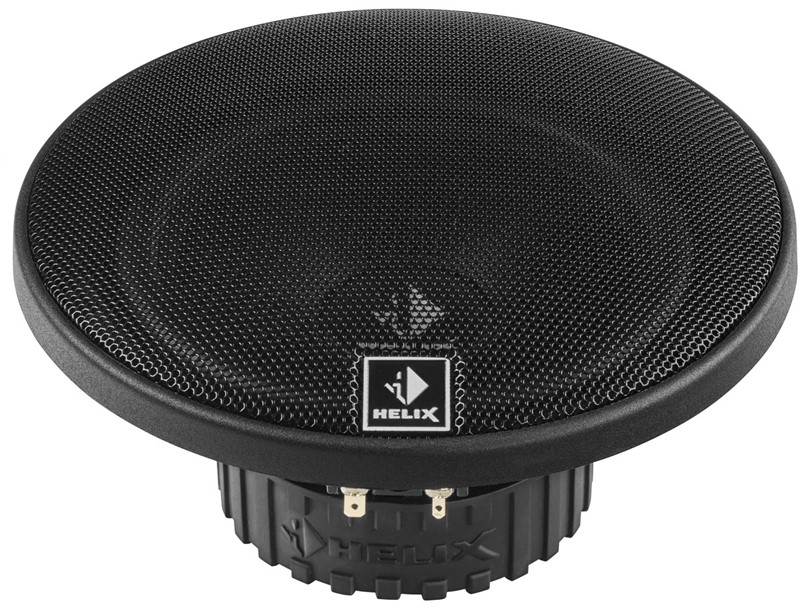

Grille included
Technical data
Power RMS / max. 100 / 200 Watts
Frequency response 40 Hz - 25,000 Hz
Impedance 4 Ω
Efficiency 1 W / 1 m 90 dB
Cone material TW: Coated silk
M: -
W: Glassfiber-paper compound
Crossover 6/12 dB with impedance compensation, bandstop filter and tweeter level adjustment
Outer diameter TW: 58 mm / 2.28"
M: -
W: 165.5 mm / 6.52"
Installation diameter TW: 49.3 mm / 1.95"
M: -
W: 142 mm / 5.60"
Installation depth TW: 15 mm / 0.60"
M: -
W: 67 mm / 2.64"
Compatibility

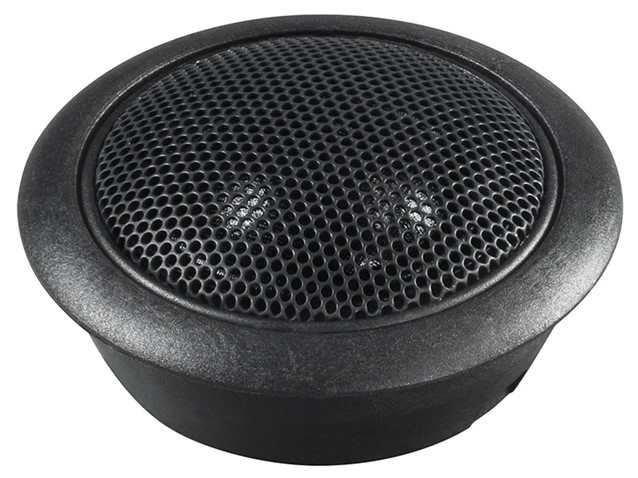

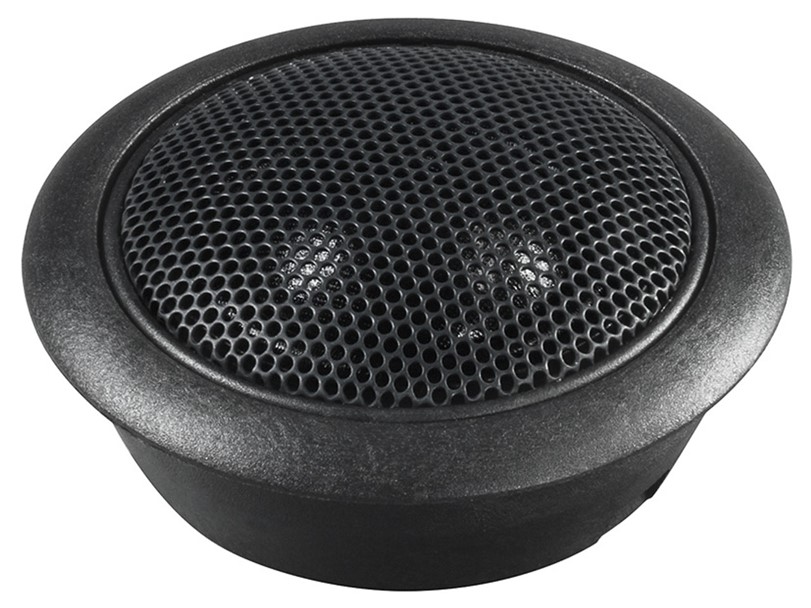

2 x Tweeter HELIX P 1T incl. flush mount
2 x Woofer HELIX P 6B incl. mounting ring and grille
2 x 2-way crossover

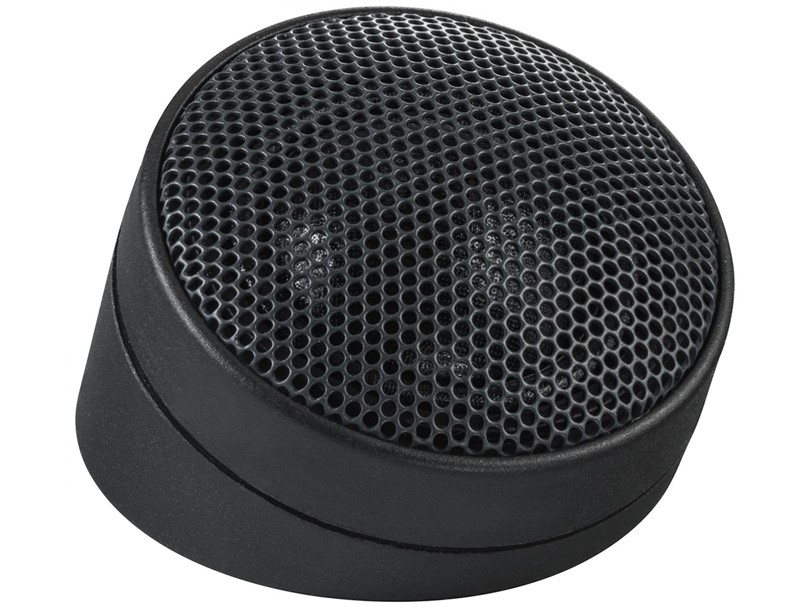

2 x Surface mount for tweeter
2 x Fitting spring for tweeter
1 x Mounting material
Scope of delivery
2 x Hochtöner HELIX P 1T inkl. Einbautopf
2 x Tiefmitteltöner HELIX P 6B inkl. Montagering und Schutzgitter
2 x 2-Wege Frequenzweiche
2 x Schrägpult für Hochtöner
2 x Haltefeder für Hochtöner
1 x Befestigungsmaterial
