Helix P 52C

Nærmere beskrivelse på dansk følger snarest...

Puristic yet trimmed to maximum sound quality - the component speaker systems of the P series don't need to dazzle with visual gimmicks. The whole construction with lots of finesse follows the acoustic performance which is absolutely breathtaking.

The unique glassfiber-paper compound cone of the mid-woofer, the hand-coated silk dome tweeter and the complex crossover network made from selected components are only a few of the technical highlights. The P 52C is not only in a class of its own, but thrills with absolutely uncoloured tonality, excellent impulse response and fascinating treble resolution.

Features

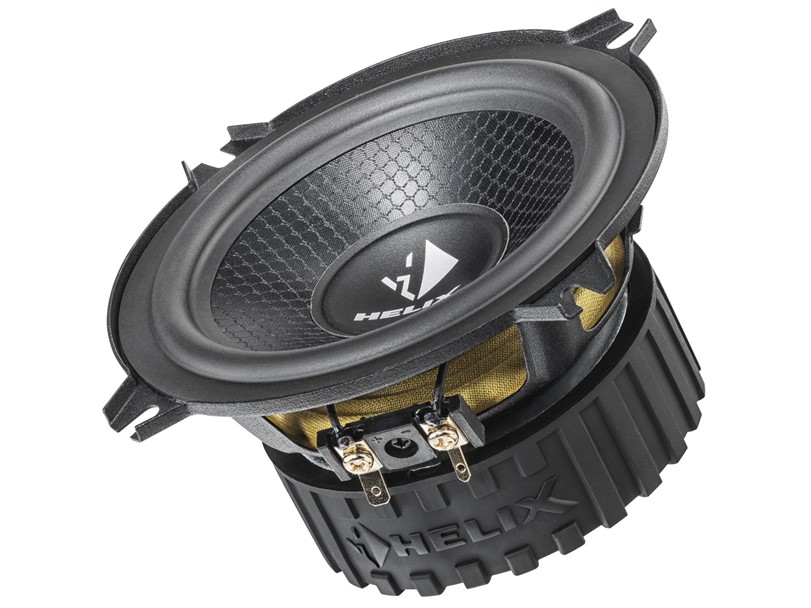

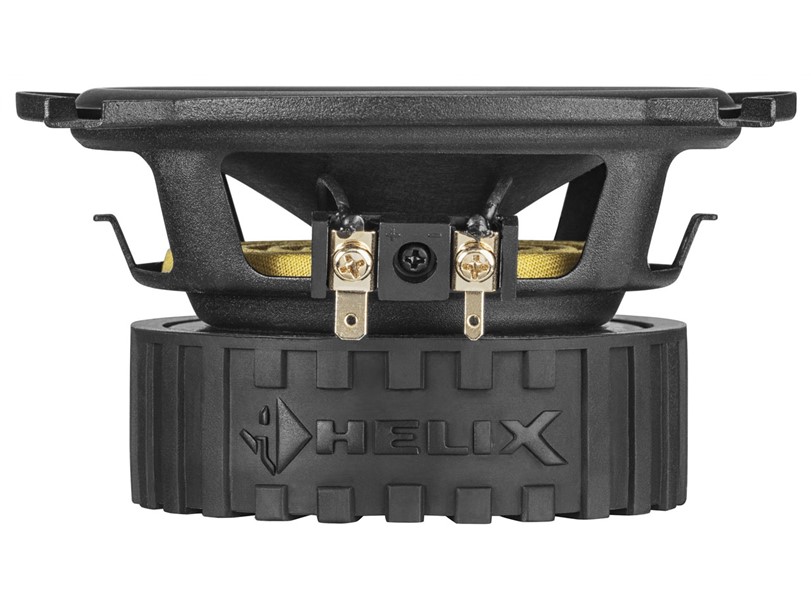

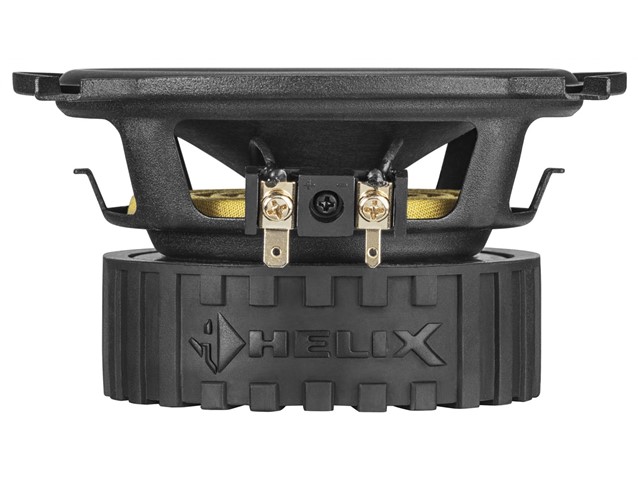

5.25” / 130 mm woofer with novel glassfiber-paper compound cone for maximum stiffness combined with lowest moving mass and perfect inner damping

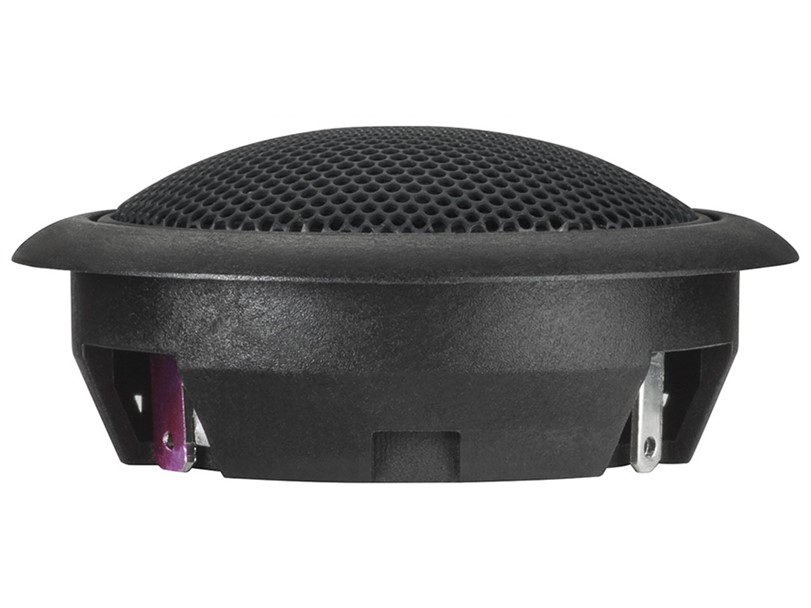

1” / 25 mm tweeter with hand-coated silk dome for balanced, natural sound reproduction and lowest compression effects

Complex crossover network with impedance compensation and tweeter level adjustment; solely equipped with highgrade components:

- Zero-distortion air coils with loweest DC resistance

- Low-induction metal film resistors

- Minimum-loss Audiotec foil condensers for tweeter crossover

Gold-plated terminals

Grille included

Technical data

Power RMS / max. 80 / 160 Watts

Frequency response 60 Hz - 25,000 Hz

Impedance 4 Ω

Efficiency 1 W / 1 m 89 dB

Cone material TW: Coated silk

M: -

W: Glassfiber-paper compound

Crossover 6/12 dB with impedance compensation and tweeter level adjustment

Outer diameter TW: 58 mm / 2.28"

M: -

W: 128,5 mm / 5.06"

Installation diameter TW: 49.3 mm / 1.95"

M: -

W: 111 / 4.37"

Installation depth TW: 15 mm / 0.60"

M: -

W: 62.5 mm / 2.46"

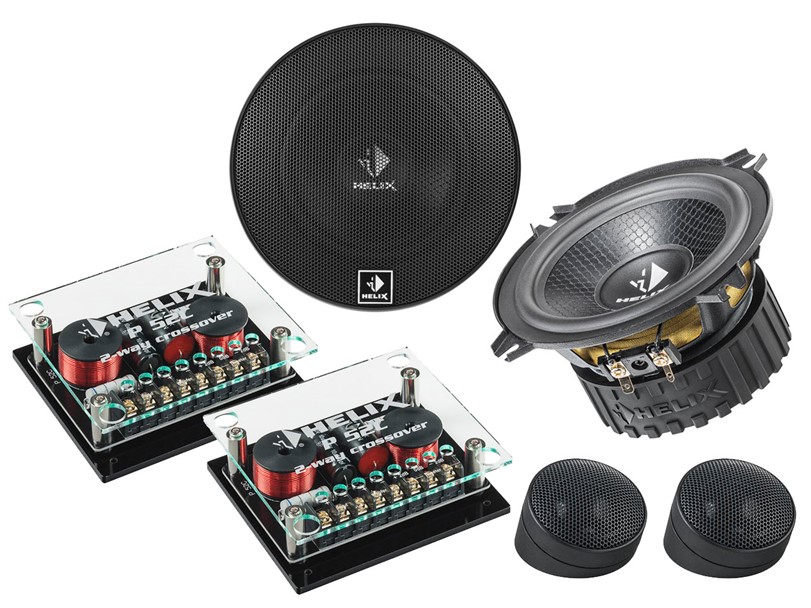

Scope of delivery

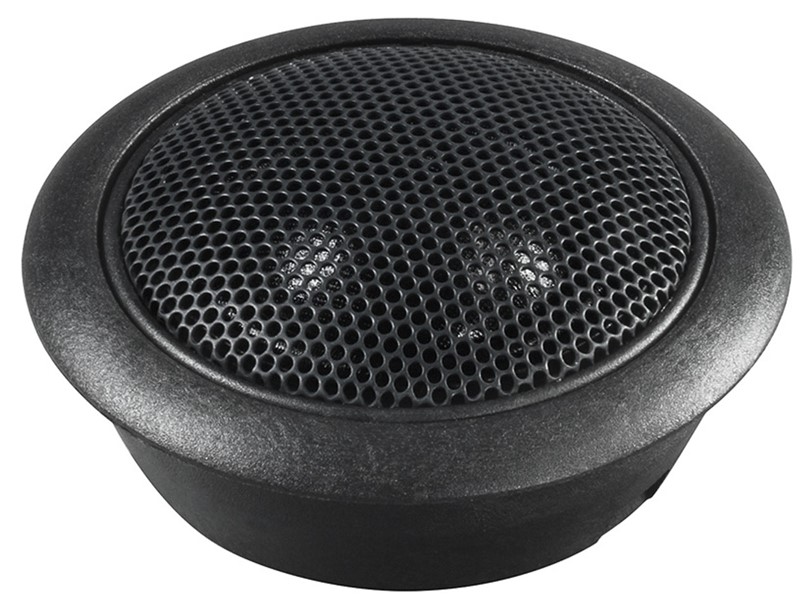

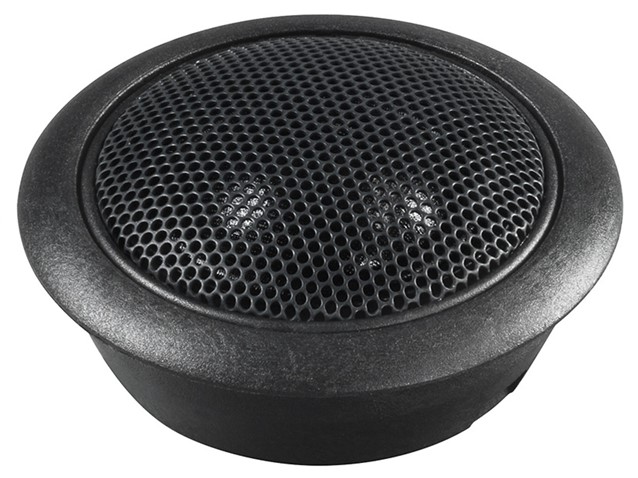

2 x Tweeter HELIX P 1T incl. flush mount

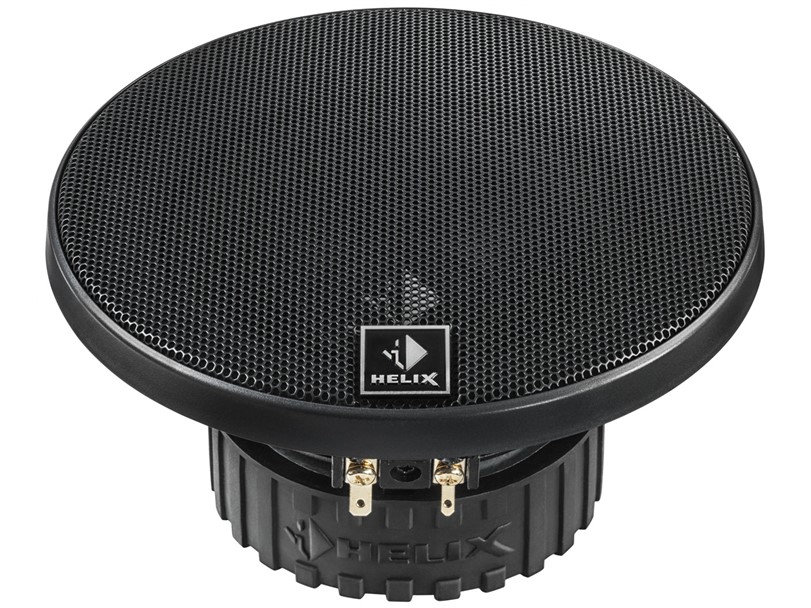

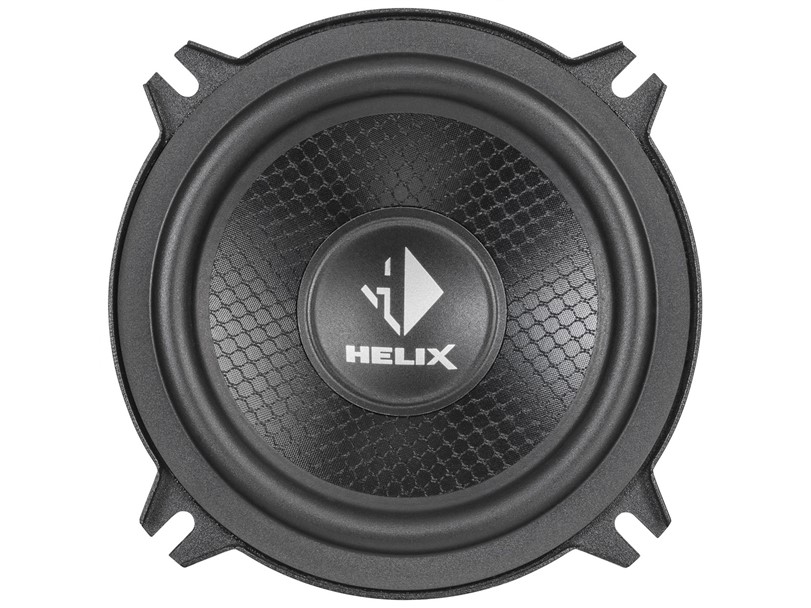

2 x Woofer HELIX P 5B incl. mounting ring and grille

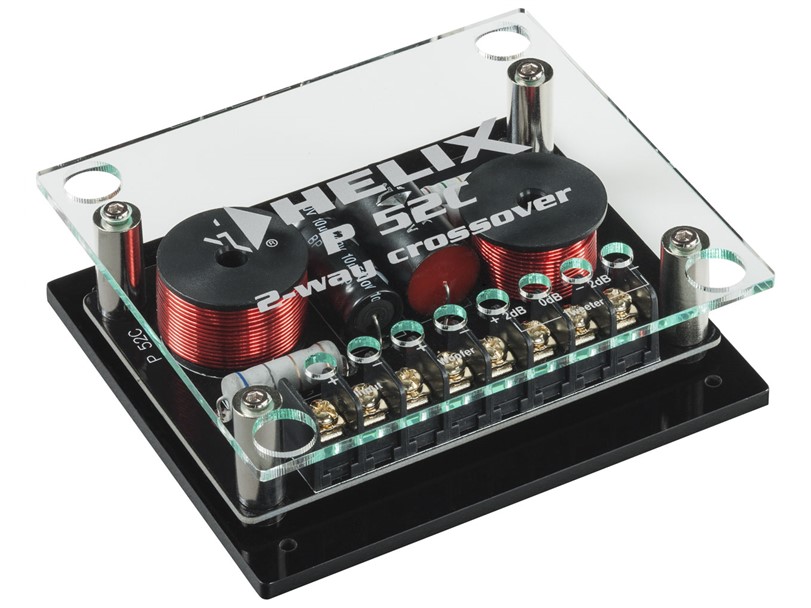

2 x 2-way crossover

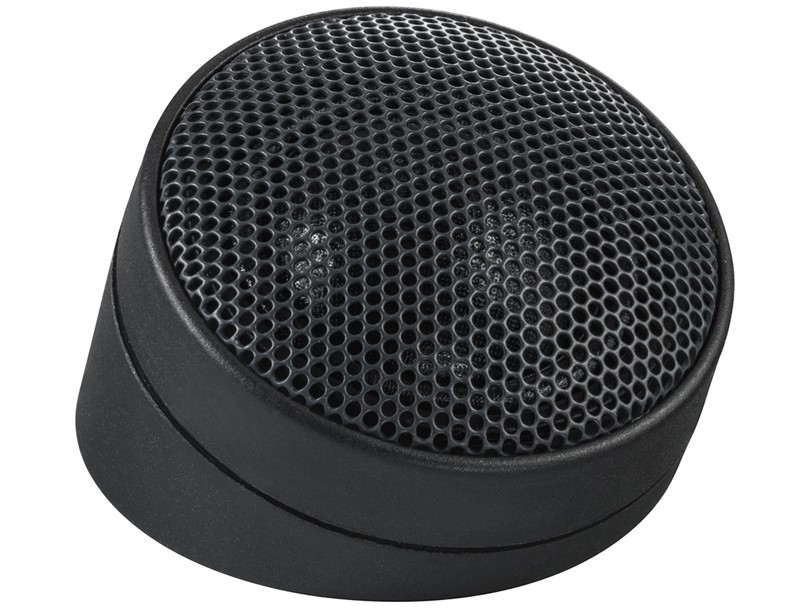

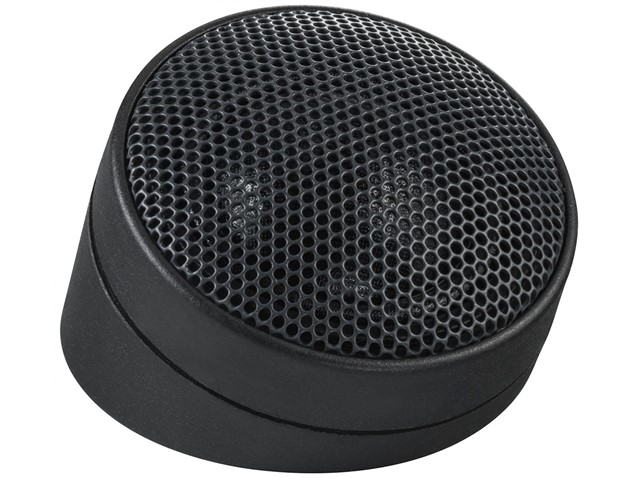

2 x Surface mount for tweeter

2 x Fitting spring for tweeter

1 x Mounting material
