Helix P 3M
3" (75mm) Mellemtoner
P821300
SPAR 0%
Helix P 3M
3" (75mm) Mellemtoner
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
1499 DKK
779,48
PR. SÆT
excl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
x
Nærmere beskrivelse på dansk følger snarest...

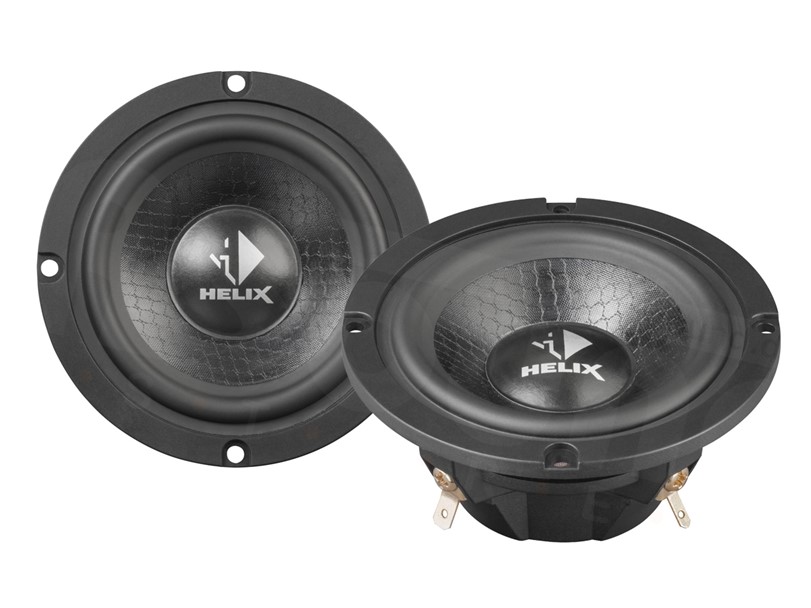

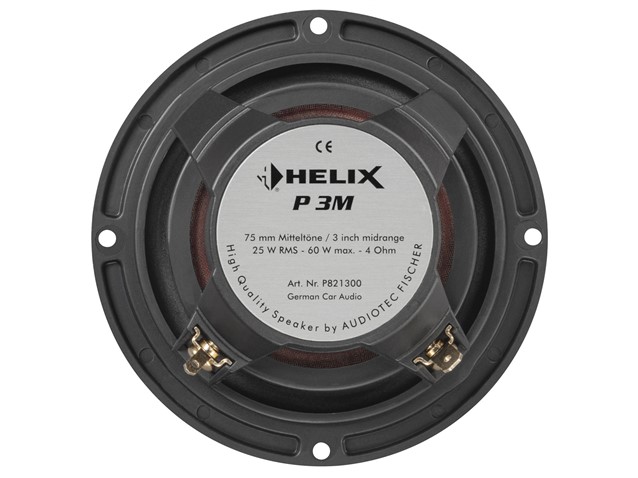

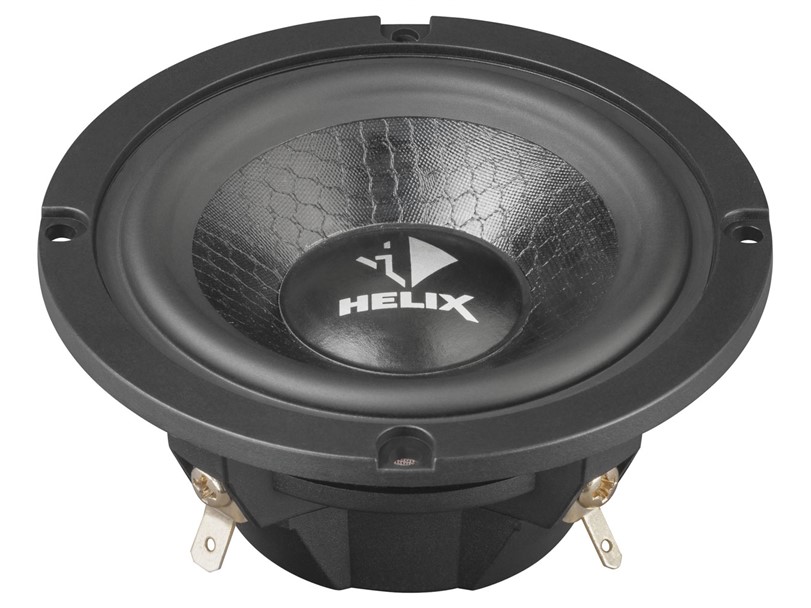

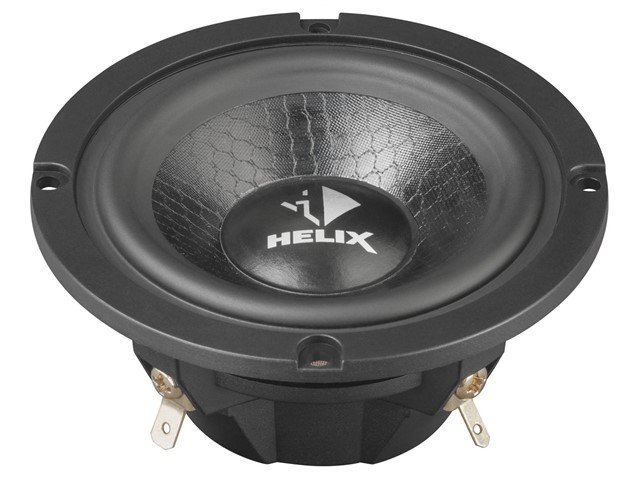

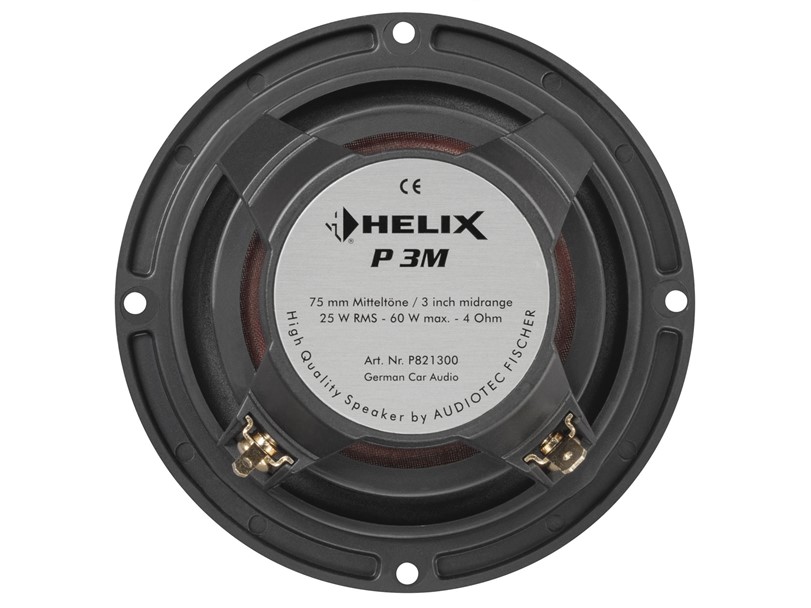

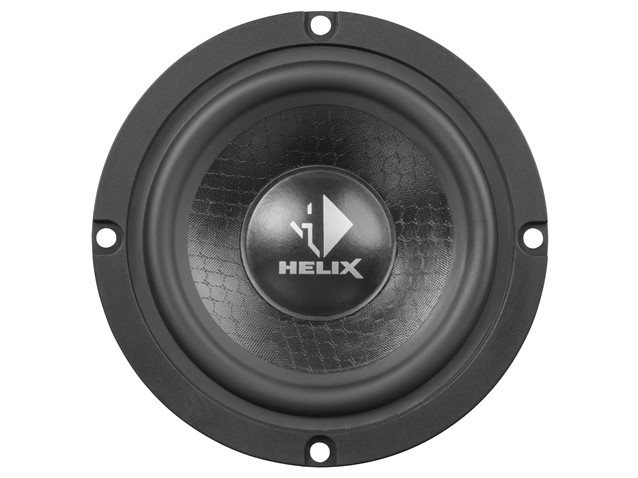

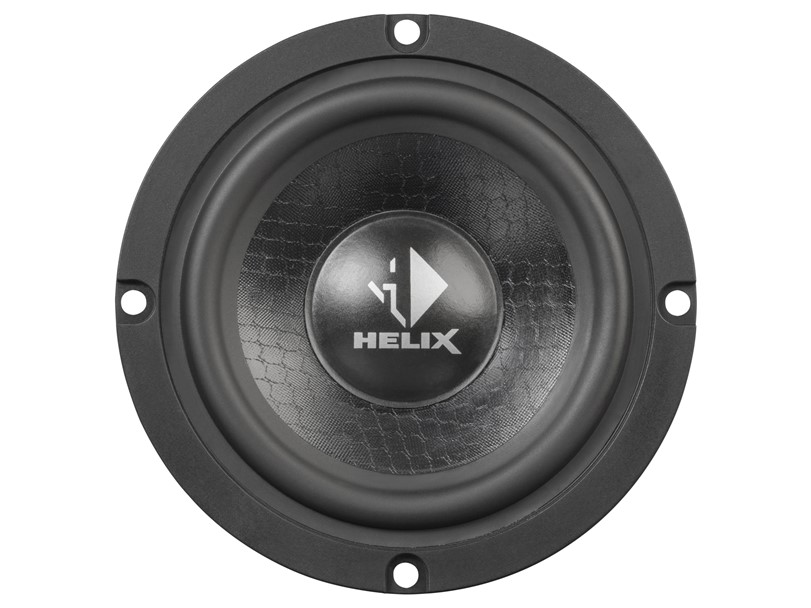

The P 3M cone midrange speaker is the perfect complement for every fully active driven 2-way speaker system. Its lightweight glassfiber-paper compound cone guarantees excellent impulse response and minimum sound discoloration, whereas the highly efficient neodymium magnet system provides for a linear drive and minimum distortion. Additionally, the flow-optimized basket not only prevents rear reflections, but also ensures compression-free sound reproduction thanks to optimum voice coil cooling. The P 3M develops its full tonal potential in a sealed, dampened enclosure.
Features
3” / 75 mm cone midrange speaker with novel glassfiber-paper compound cone for maximum stiffness combined with lowest moving mass and perfect inner damping
Highly efficient, compact neodymium magnet system for linear drive and minimum distortion
Low-resonant basket made from glassfiber reinforced plastic with optimized voice coil cooling for high power handling

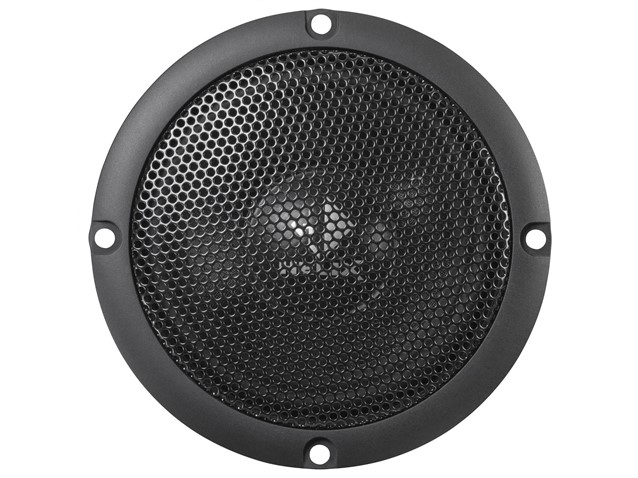

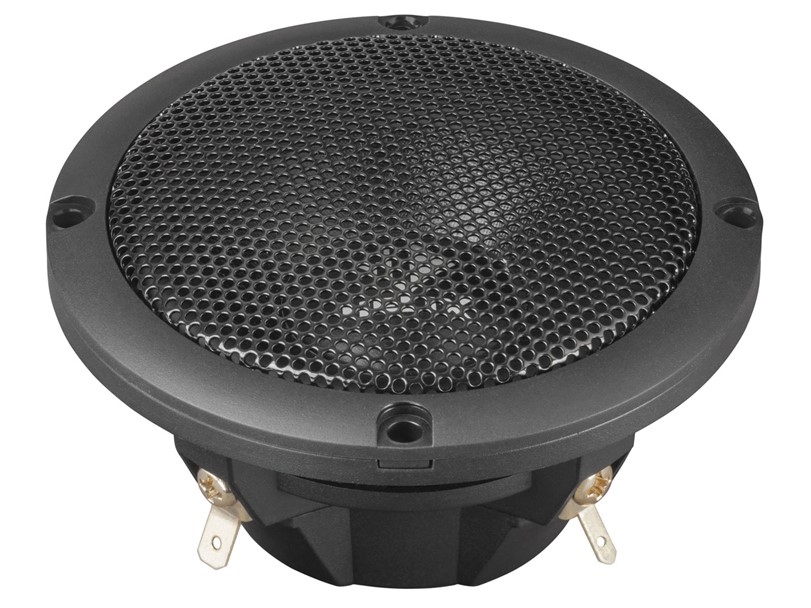

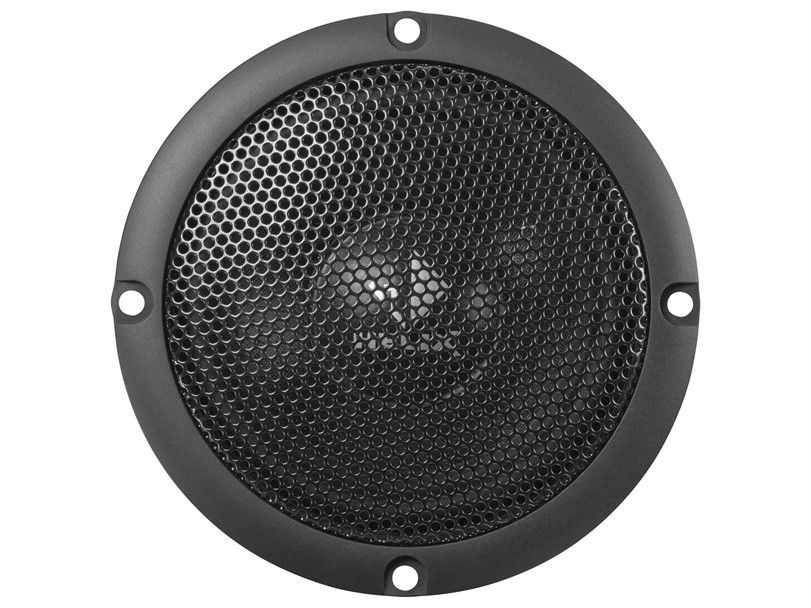

Grille included
Technical data
Power RMS / max. P 75 / 150 Watts
(highpass > 400 Hz at 24 dB/Oct.)
Impedance Z 4 Ω
DC resistance Re 3.3 Ω
Frequency response 400 Hz - 5,000 Hz
Resonance frequency Fs 130 Hz
Mechanical Q factor Qms 4.72
Electrical Q factor Qes 0.50
Total Q factor Qts 0.45
Compliance Cms 415 µm/N
Equivalent air volume Vas 0.54 L
Force factor B*I 4.4 Tm
Efficiency 1 W / 1 m SPL 86 dB
Cone area Sd 30 cm²
Moving mass Mms 3.7 g
Cone material Glassfiber-paper compound cone
Mechanical resistance Rms 0.63 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height 8 mm
Max. linear excursion Xmax +/- 2 mm
Outer diameter ø 90 mm / 3.54"
Installation diameter ø 73 mm / 2.87"
Installation depth 37 mm / 1.46"
Recommended enclosure volumes
Sealed box with minimum 200 ml net volume
Net volumes Recommended DSP / amplifier settings
0.2 liter (System resonance: 230 Hz) Crossover frequency: 500 Hz
Min. filter slope: 12 dB/Oct.
0.4 liter (System resonance: 190 Hz) Crossover frequency: 450 Hz
Min. filter slope: 18 dB/Oct.
0.6 liter (System resonance: 170 Hz) Crossover frequency: 400 Hz
Min. filter slope: 24 dB/Oct.
Note: The enclosure should always be filled with appropriate damping material.
Scope of delivery
2 x Midrange speaker HELIX P 3M
2 x Grille
1 x Data sheet
1 x Mounting pattern
