Helix P 1T
25 mm Diskanter
P821100
SPAR 0%
Helix P 1T
25 mm Diskanter
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
799 DKK
415,48
PR. SÆT
excl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
x
Nærmere beskrivelse på dansk følger snarest...
There's definitely not much to say about this tweeter - the fantastic sonic performance thrills both the press and end-users since many years. Despite the decent appearance this driver is a "giant" with respect to sound quality. Like its predecessor it easily outperforms competitor products and defines the standard in its class. Precision, resolution and tonality have a short and simple name - P 1T.
Features
1" / 25 mm tweeter with high efficient neodymium magnet and hand-coated silk dome for balanced, natural sound reproduction and lowest compression effects
Including installation and mounting equipment
Lowest possible production tolerances and solely use of best materials
Technical data
Power RMS / max. P 100 / 200 Watts
(highpass > 3,000 Hz at 12 dB/Oct.)
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 2,500 Hz - 25,000 Hz
Resonance frequency Fs 1,500 Hz
Efficiency 1 W / 1 m SPL 91 dB
Voice coil diameter ø 25 mm
Cone area Sd 4.9 cm²
Moving mass Mms 0.3 g
Cone material Silk dome
Outer diameter ø 58 mm / 2.28"
Installation diameter ø 49.3 mm / 1.95"
Installation depth 15 mm / 0.60"
Recommended crossover frequencies for the highpass
Slope Minimum crossover frequency
6 dB/Octave 4,000 Hz
12 dB/Octave > 3,000 Hz
24 dB/Octave > 2,500 Hz
Scope of delivery
2 x Tweeter HELIX P 1T incl. flush mount
2 x Surface mount
2 x Fitting spring
1 x Mounting material
Nærmere beskrivelse på dansk følger snarest...
There's definitely not much to say about this tweeter - the fantastic sonic performance thrills both the press and end-users since many years. Despite the decent appearance this driver is a "giant" with respect to sound quality. Like its predecessor it easily outperforms competitor products and defines the standard in its class. Precision, resolution and tonality have a short and simple name - P 1T.
Features
1" / 25 mm tweeter with high efficient neodymium magnet and hand-coated silk dome for balanced, natural sound reproduction and lowest compression effects
Including installation and mounting equipment
Lowest possible production tolerances and solely use of best materials
Technical data
Power RMS / max. P 100 / 200 Watts
(highpass > 3,000 Hz at 12 dB/Oct.)
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 2,500 Hz - 25,000 Hz
Resonance frequency Fs 1,500 Hz
Efficiency 1 W / 1 m SPL 91 dB
Voice coil diameter ø 25 mm
Cone area Sd 4.9 cm²
Moving mass Mms 0.3 g
Cone material Silk dome
Outer diameter ø 58 mm / 2.28"
Installation diameter ø 49.3 mm / 1.95"
Installation depth 15 mm / 0.60"
Recommended crossover frequencies for the highpass
Slope Minimum crossover frequency
6 dB/Octave 4,000 Hz
12 dB/Octave > 3,000 Hz
24 dB/Octave > 2,500 Hz
Scope of delivery

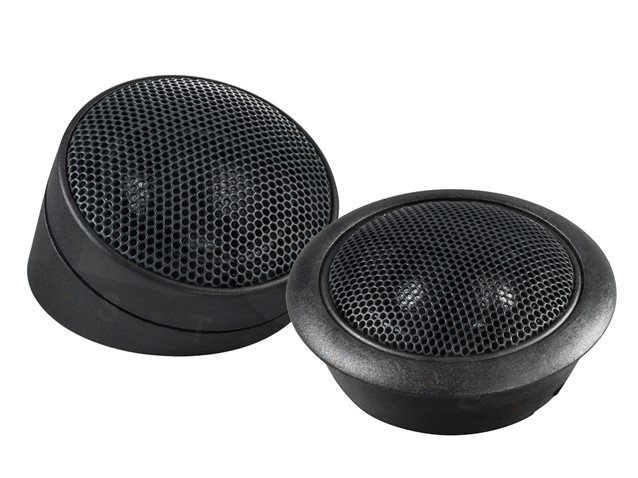

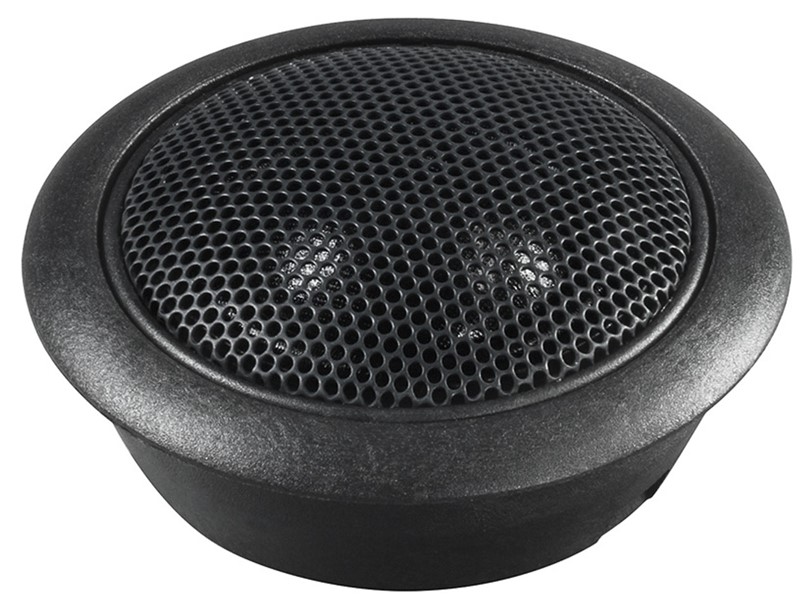

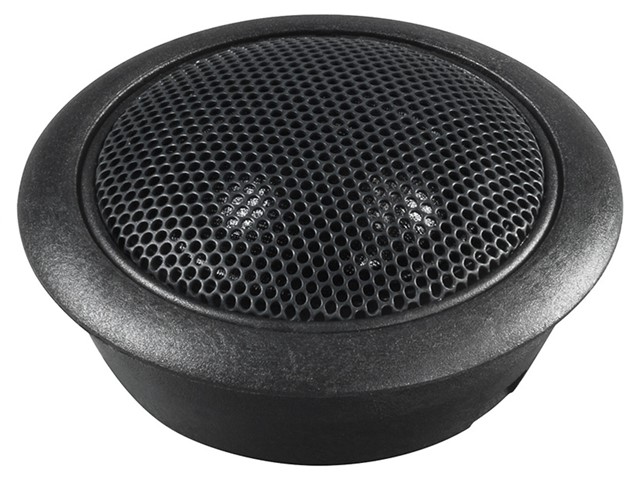

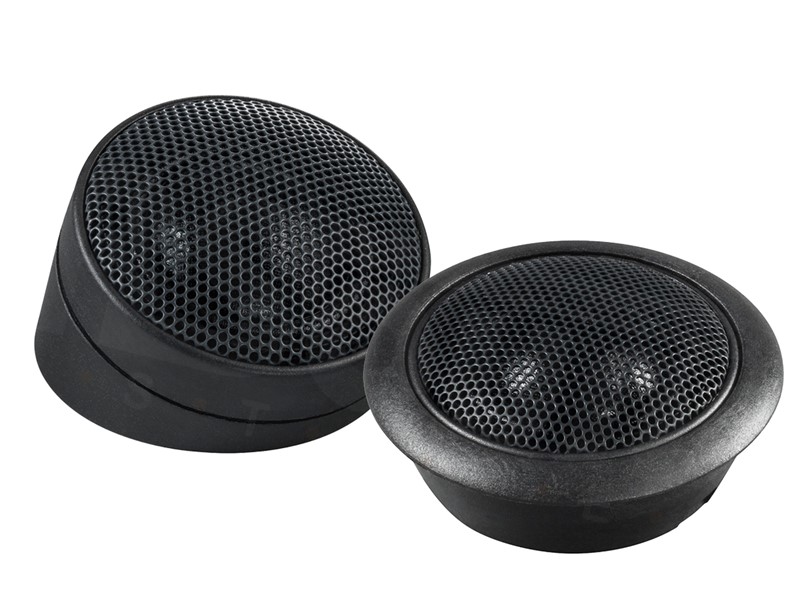

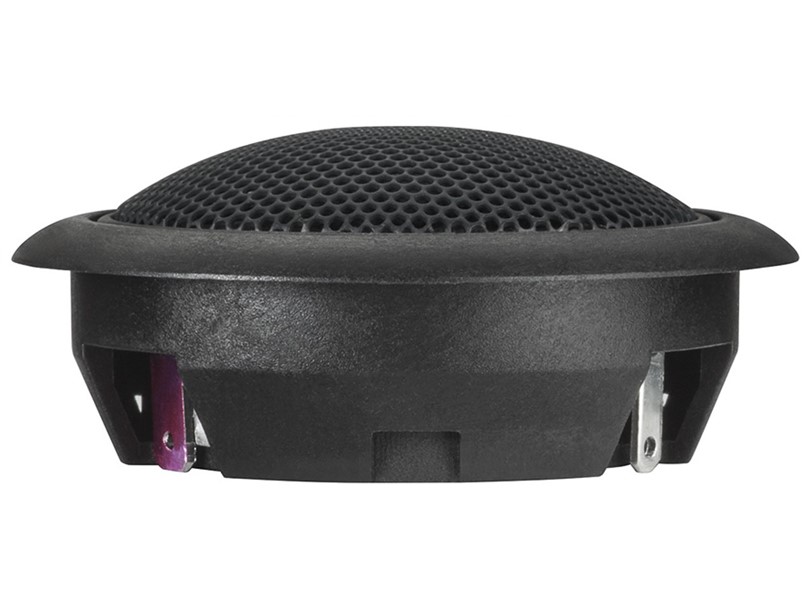

2 x Tweeter HELIX P 1T incl. flush mount

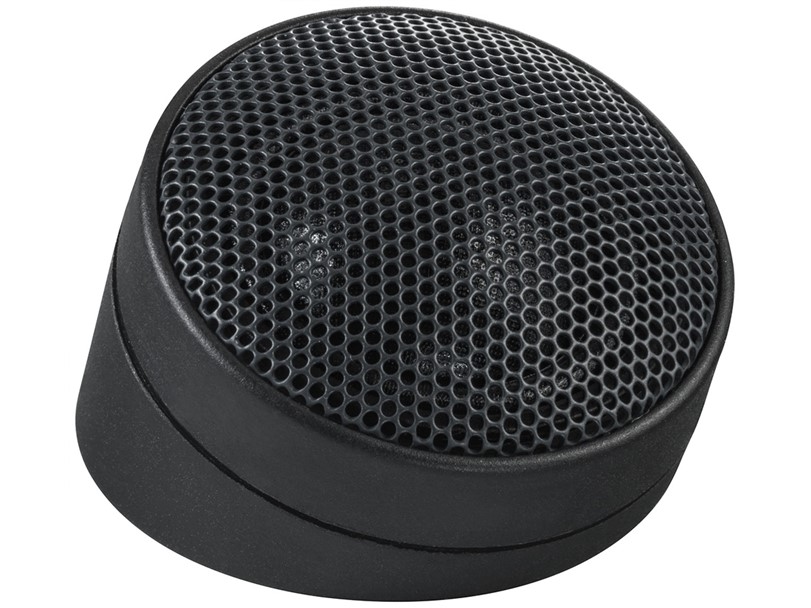

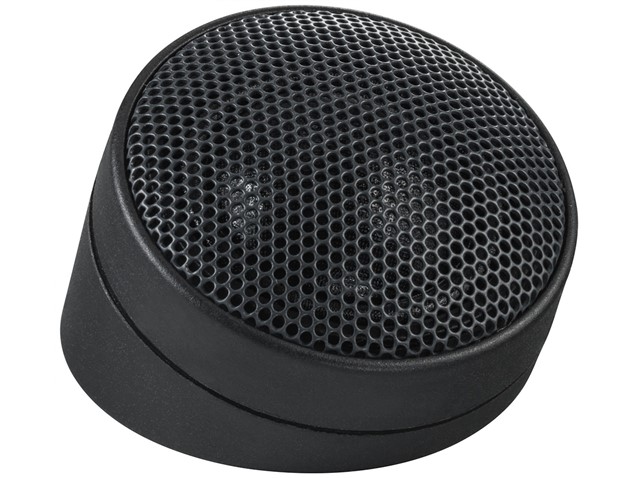

2 x Surface mount
2 x Fitting spring
1 x Mounting material
