Helix H 400X
1-kanals forstærker
P814000
SPAR 0%
Helix H 400X
1-kanals forstærker
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
3999 DKK
2.079,48
PR. STK
excl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
x
Nærmere beskrivelse på dansk følger snarest...

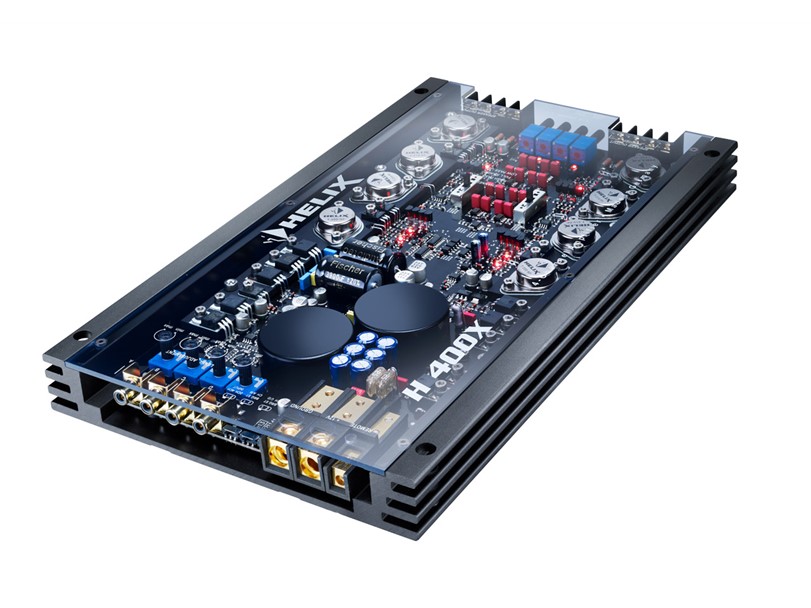

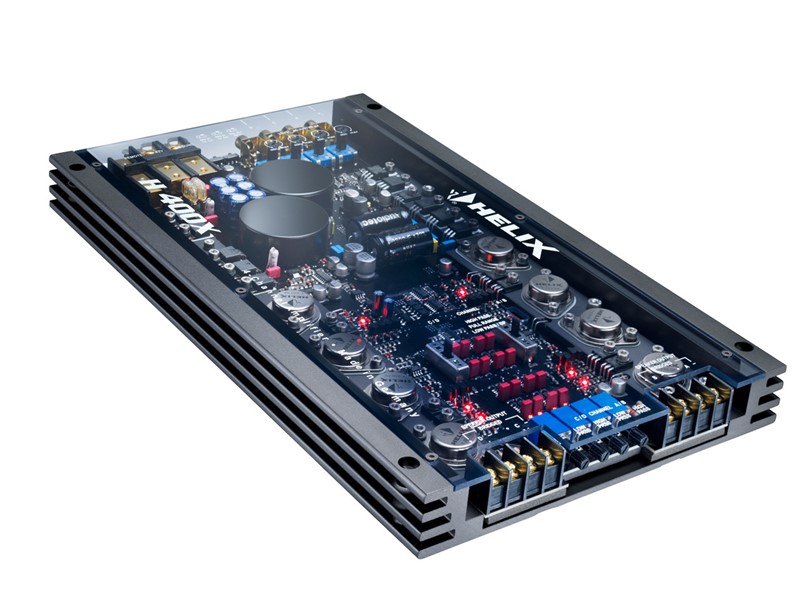

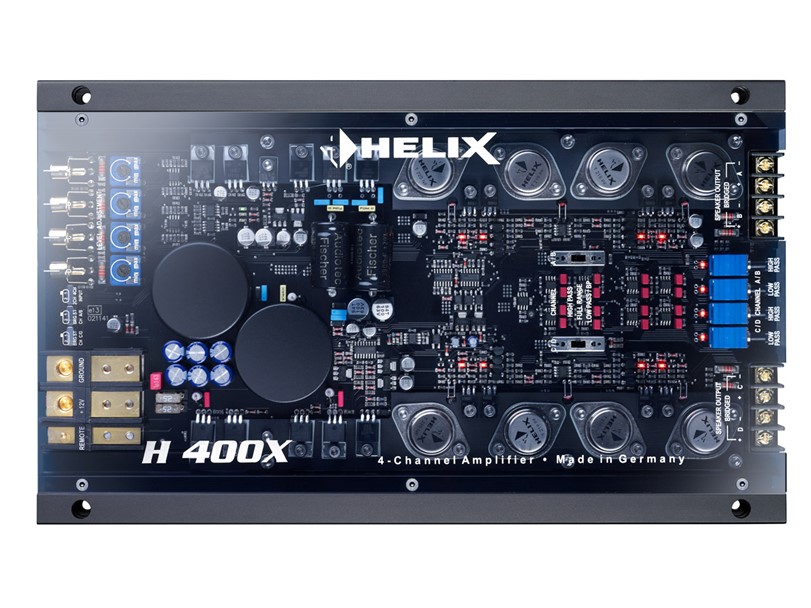

The best of both worlds – extremely fast MOSFET driver circuits in Class A operation combined with enormously load-stable, power-potent “afterburners” in bipolar technology. This is the recipe for success for the particularly flat amplifiers, which, thanks to their sophisticated processor control, don’t get their feathers ruffled in any situation. Improved repeatedly over the years, these powerhouses with the characteristic and transparent enclosure covers have reached a sound level that is unrivalled, and not just in the value-for-money category.
Features
Extremely stable amplifiers in an extraordinary shallow heatsink
Unique Bipolar output transistor technology for unparalleled natural and warm sound experience
Fastest drivers for lowest possible THD
Processor-controlled technology for optimized operation
Fully active crossover with highpass, lowpass and bandpass filter
"Input mode" switch for flexible input signal routing
RMI (Realmixed Input) for generating an optimised mono-summing signal from
the left and right channels
Smart protection circuits against overheating, over- and undervoltage, speaker short circuiting, low impedance and faulty connection
24 carat gold-plated solid connection terminals suitable for 25 mm² / gauge 4
Completely made in Germany by using only selected components
Technical data
Output power RMS / max.
- @ 4 Ohms 4 x 70 / 140 Watts
- @ 2 Ohms 4 x 125 / 250 Watts
- @ 1 Ohm -
- bridged @ 4 Ohms 2 x 250 / 500 Watts
- bridged @ 2 Ohms -
Amplifier technology Class AB
Inputs 4 x RCA / Cinch
1 x Remote In
Input sensitivity RCA / Cinch 0.7 - 8 Volts
Input impedance RCA / Cinch 10 kOhms
Input impedance highlevel -
Outputs 4 x Speaker output
Output voltage RCA / Cinch -
Signal converter for digital input -
Frequency response 20 Hz - 20,000 Hz
Bass boost -
Highpass 15 Hz - 4,000 Hz adjustable
Lowpass 15 Hz - 4,000 Hz adjustable
Bandpass 15 Hz - 4,000 Hz adjustable
Subsonic -
Phase -
Slope high- / lowpass 12 dB/Oct.
Slope subsonic / lowpass -
Signal-to-noise ratio digital input -
Signal-to-noise ratio analog input 110 dB (A-weighted)
Distortion (THD) < 0.009 %
Damping factor > 300
Operating voltage 9 - 17 Volts
Idle current 2200 mA
Fuse 2 x 25 A LP-Mini-fuse (APS)
Additional features Active, adjustable crossover, input mode switch, Colour Protection System
Dimensions (H x W x D) 31.5 x 200 x 336 mm /
1.24 x 7.87 x 13.23”
Scope of delivery
1 x Amplifier HELIX H 400X
2 x Allen key
1 x Mounting material
1 x Instruction manual
