Helix F 52C
5.25" (13cm) Komponentsystem m. løs diskant
F622520
SPAR 0%
Helix F 52C
5.25" (13cm) Komponentsystem m. løs diskant
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
1099 DKK
599,-
PR. SÆT
excl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
x
Nærmere beskrivelse på dansk følger snarest...
Immerse yourself in the world of HELIX sound with the new F loudspeaker series. The combination of proven components and cutting-edge materials guarantees a great sound experience with rich bass, accurate mids and detailed highs.
During development special attention was paid to an easy integration into the vehicle. In addition to the low installation depth, the innovative, two-part "Flex-Crossover" in particular offers much more freedom in terms of connectivity and installation. Thus the F loudspeakers are the first choice especially if the tweeters and woofers are separately installed in the door and A-pillar.
The elegant design underlines the qualities at first glance. Thus, the bass drivers of this series present themselves in a stylish, elegant design with matt black HELIX cone finish and shiny black HELIX-logo.
Features
Stylish & elegant HELIX design with black matt cone finish and black shiny HELIX-logo

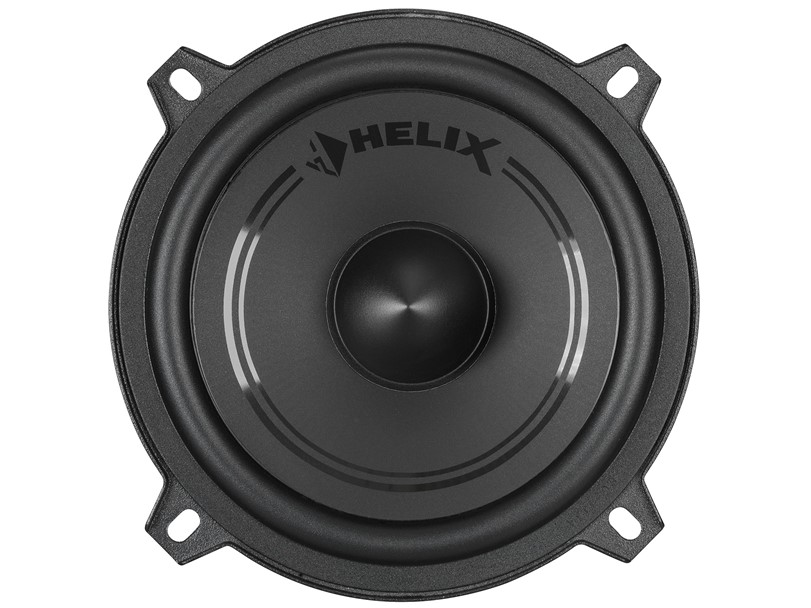

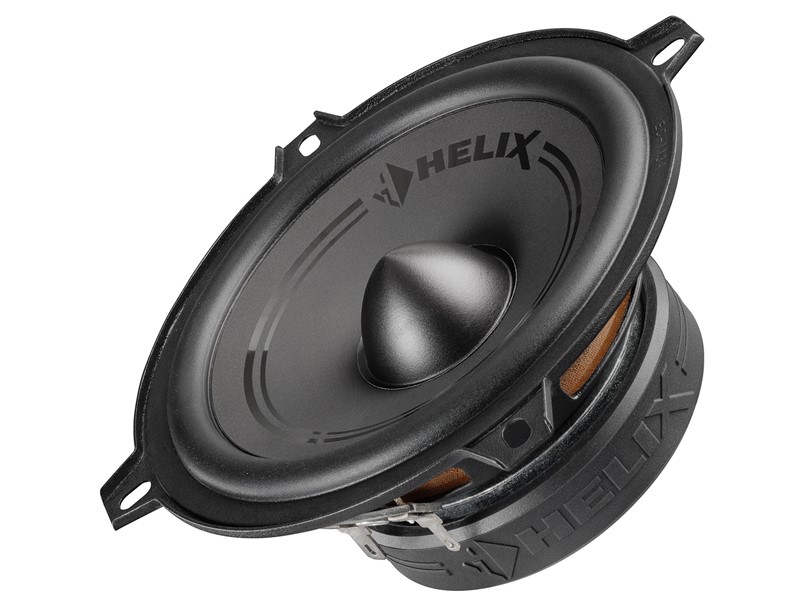

5.25” / 130 mm woofer with novel, low resonant cone made of injected polypropylene with embedded carbon fibers

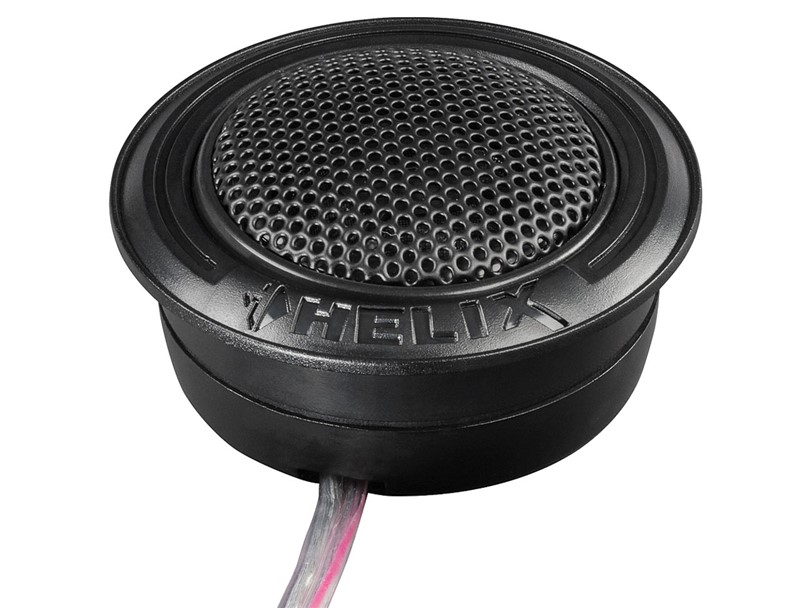

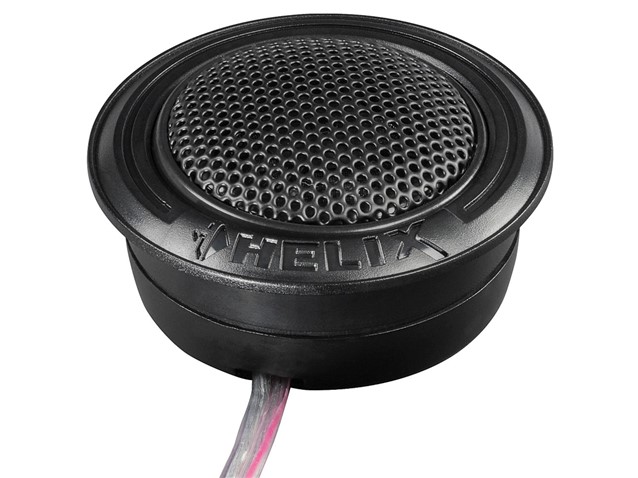

0.75” / 20 mm silk dome tweeter with neodymium magnet for crispy and clear treble response
Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
Solid rubber magnet protection ring with HELIX-logo

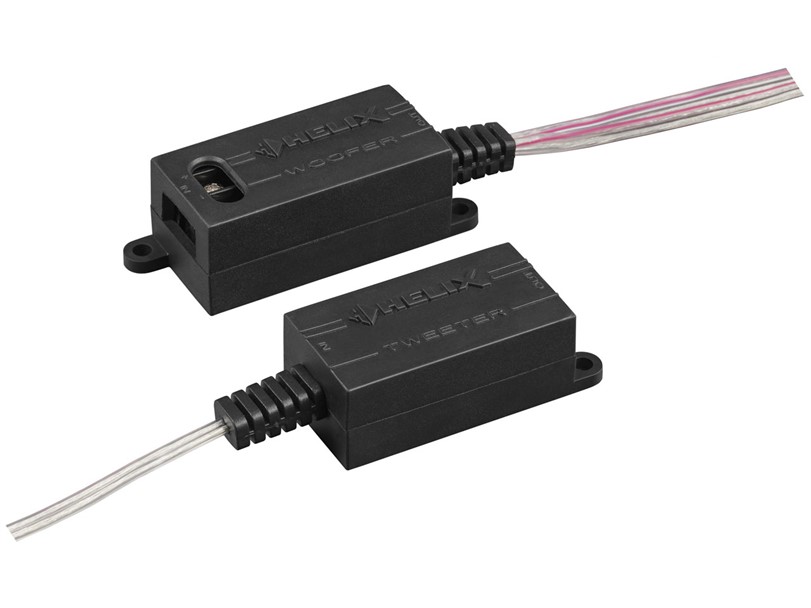

Separate, two-part “Flex-Crossover“ with 12/12 dB slope and integrated tweeter protection for versatile connection options – well suited for the installation in vehicles with separate mounting positions of the tweeter and woofer
Technical data
Power RMS / max. 50 / 100 Watts
Frequency response 65 Hz - 22.000 Hz
Impedance 3 Ω
Efficiency 1 W / 1 m 90 dB
Cone material TW: Silk dome
M:
W: Injected polypropylene with embedded carbon fibers
Crossover Separate, 12/12 dB slope and tweeter protection
Outer diameter TW: 52.6 mm / 2.07"
M: -
W: 129 mm / 5.08"
Installation diameter TW: 45 mm / 1.77"
M: -
W: 112 mm / 4.41"
Installation depth TW: 17.3 mm / 0.68"
M: -
W: 52 mm / 2.05"
Dimensions crossover Tweeter: 51.5 x 27.5 x 20.5 mm / 2.03 x 1.08 x 0.81"
Woofer: 57 x 27.5 x 23.5 mm / 2.24 x 1.08 x 0.93"

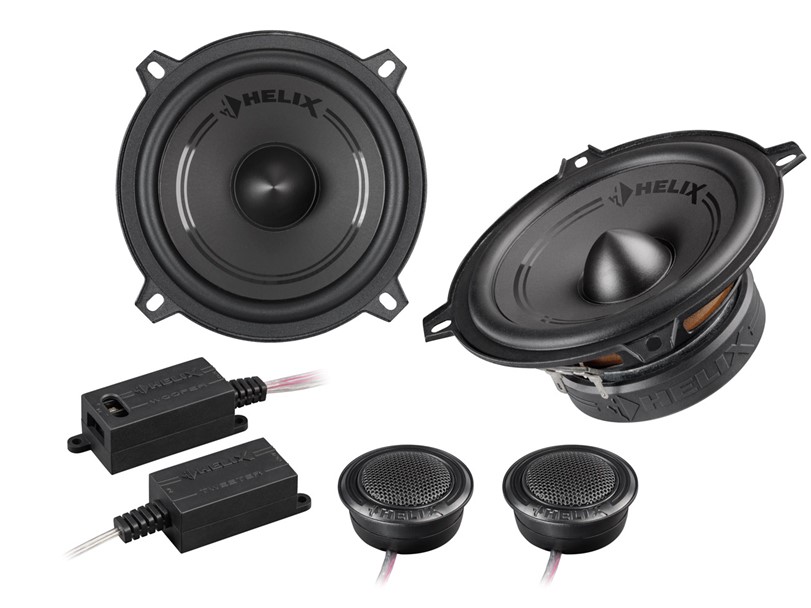

Scope of delivery
2 x Tweeter HELIX F 1T incl. mounting material
2 x Woofer HELIX F 5B
2 x Two-part Flex-Crossover
1 x Mounting material
1 x Instruction manual
1 x Mounting pattern
