Helix C 1T
25 mm Diskanter
C921100
Helix C 1T
25 mm Diskanter
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
1.000,-
PR. SÆT
excl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- DETTE ER ET OUTLET-PRODUKT!
- Kan have beskadiget emballage! Derfor den lave pris!
- Varen er 100% ny og ubeskadiget!
- 30 dages fuld returret og 2 års garanti
- Kan KUN bestilles her på outlet.carsound.dk
- BEGRÆNSET ANTAL og Først-til-mølle
x
Nærmere beskrivelse på dansk følger snarest...

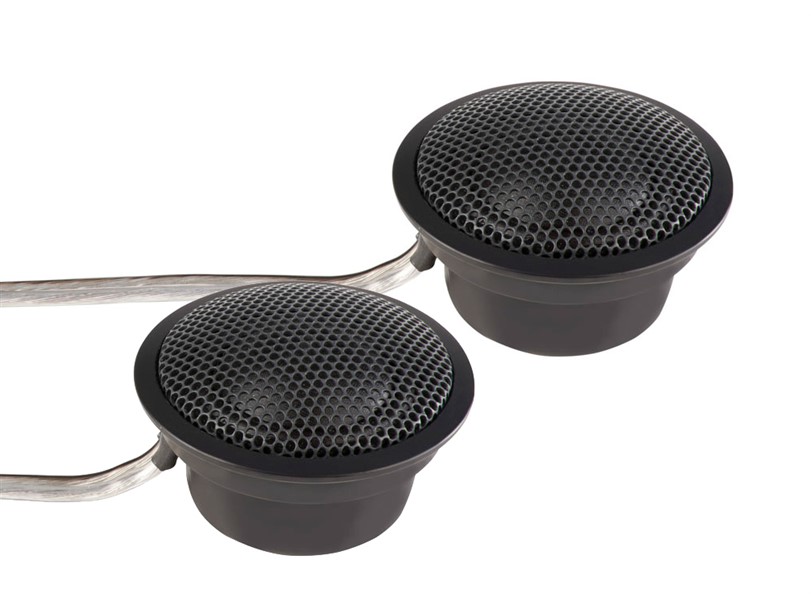

These reference speakers in our C series raise the bar to a new level of fantastic sound quality. The legendary sisal woofer cones are equipped with an additional structural damping layer made of an elastomer, which again improves the acoustic properties of the driver. The tweeter enclosure also underwent a complete overhaul. Anyone who wants to operate these loudspeakers as fully active speakers (e.g. using our new digital signal processors) can put together the system of their choice by combining the individual components.
Features
Ultra lightweight silk dome for a distinguished and natural treble response
Sturdy protection grille for protecting the dome from damages
12 x drilled neodymium magnet for highest magnetic flux linearity
Integrated, dampened coupling volume for very low resonance frequency
Technical data
Power RMS / max. P 100 / 150 Watts
(highpass > 3,000 Hz at 12 dB/Oct.)
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 820 Hz - 25,000 Hz
Resonance frequency Fs 820 Hz
Efficiency 1 W / 1 m SPL 90 dB
Voice coil diameter ø 25 mm
Cone area Sd 4.9 cm²
Moving mass Mms 0.35 g
Cone material Silk dome
Outer diameter ø 50 mm / 2.00"
Installation diameter ø 44 mm / 1.73"
Installation depth 20.5 mm / 0.81"
Recommended crossover frequencies for the highpass
Slope Minimum crossover frequency
6 dB/Octave 3,500 Hz
12 dB/Octave > 2,500 Hz
24 dB/Octave > 1,800 Hz
Scope of delivery
2 x High-end tweeter HELIX C 1T
2 x Fitting spring
2 x Allen screw
1 x Allen key
Nærmere beskrivelse på dansk følger snarest...
These reference speakers in our C series raise the bar to a new level of fantastic sound quality. The legendary sisal woofer cones are equipped with an additional structural damping layer made of an elastomer, which again improves the acoustic properties of the driver. The tweeter enclosure also underwent a complete overhaul. Anyone who wants to operate these loudspeakers as fully active speakers (e.g. using our new digital signal processors) can put together the system of their choice by combining the individual components.
Features
Ultra lightweight silk dome for a distinguished and natural treble response
Sturdy protection grille for protecting the dome from damages
12 x drilled neodymium magnet for highest magnetic flux linearity
Integrated, dampened coupling volume for very low resonance frequency
Technical data
Power RMS / max. P 100 / 150 Watts
(highpass > 3,000 Hz at 12 dB/Oct.)
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 820 Hz - 25,000 Hz
Resonance frequency Fs 820 Hz
Efficiency 1 W / 1 m SPL 90 dB
Voice coil diameter ø 25 mm
Cone area Sd 4.9 cm²
Moving mass Mms 0.35 g
Cone material Silk dome
Outer diameter ø 50 mm / 2.00"
Installation diameter ø 44 mm / 1.73"
Installation depth 20.5 mm / 0.81"
Recommended crossover frequencies for the highpass
Slope Minimum crossover frequency
6 dB/Octave 3,500 Hz
12 dB/Octave > 2,500 Hz
24 dB/Octave > 1,800 Hz
Scope of delivery
2 x High-end tweeter HELIX C 1T
2 x Fitting spring
2 x Allen screw
1 x Allen key
